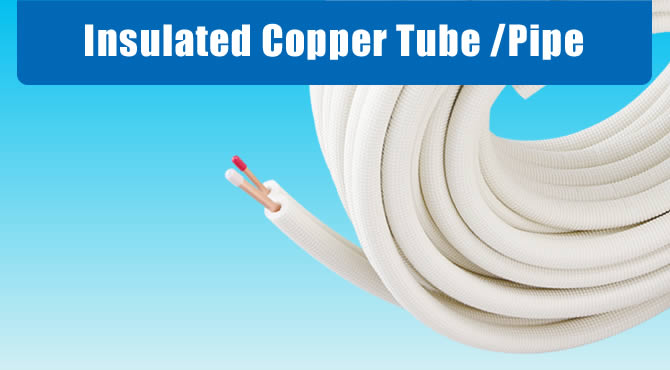

Insulated copper tubes/pips
Our insulated copper tubes and pipes are fabricated from high grade insulation with a thermal resistance up to 120°C.
Inaba denko's insulation is made of self-extinguishing materials equivalent to European Standard （EN13501-1), German Standard （DIN4102-1, B1 cass） and UL-94 HF-1.
【Safety】-Relevant Safety Standards-
-Superior Quality Control-
INABA DENKO insulated copper tube and pipe conforms to most current safety and performance standards for copper pipe and insulation.
-Flame Retardant Insulation-
Our insulation is equivalent to European Standard （EN13501-1）, German Standard （DIN4102-1, B1 class） and UL-94 HF-1.
-Copper Tube-
Japanese Standard （JIS H3300 C1220T）
American Standard （ASTM B280 UNS No.C12200）
※Chemical composition and temper
-Insulation-
European Standard （EN13501-1）
German Standard （DIN 4102-1,B1 class）
UL-94 HF-1
Vertical flame test(internal test)
Ignite the insulation for 5 seconds after heating the copper tube for 30 seconds by burner, and then leave.
【Function】
-Upgrade Working Efficiency-
-Excellent Thermal Resistance-
All insulated tubes and pipes are fabricated with high-grade insulation with a thermal resistance up to 120°C.
-Resistant Outer Covering-
Tough embossed outer covering is easy to tape and prevents any damages during installation.
In addition, PE foam has good pressure resistance and it is not easy to be teared, especially at the hanging point.
-Applicable to New Refrigerant “R32”-
※Some of limited size are non-applicable.
【Quality】-High-Quality materials-
-Improved Installation Efficiency-
Easy to bend and cut, Paircoil can easily be separated by hand. No tools or cutting are necessary.
-Length Markings-
For 20m & 30m Coil, consecutively numbered length marking are clearly printed at 1 meter intervals on insulation surface to indicate remaining length.
-Concealed Installation-
For concealed pipe installations, thicker insulation types （20mm/25mm） are available to further reduce sweating.
-Copper Specifications-
The copper tube is oxidation seamless copper tube, and is satisfied with JIS H3300 C1220T.
Chemical composition of copper tube is shown in the below table.
※Complied with ASTM B280 UNS No.C12200
-Insulation Specifications-
Chemical cross-linked foamed polyethylene enclosed by a plastic film with an embossed surface.
※This data is test outcome, not guaranteed value.
