【SD】SLIMDUCT SD

Installation Materials for Air-Conditioners 2020 11

Donwload data

Code number	Model number	A (mm)	B (mm)	C (mm)	D (mm)	E (mm)	A (inch)	B (inch)	C (inch)	D (inch)	E (inch)

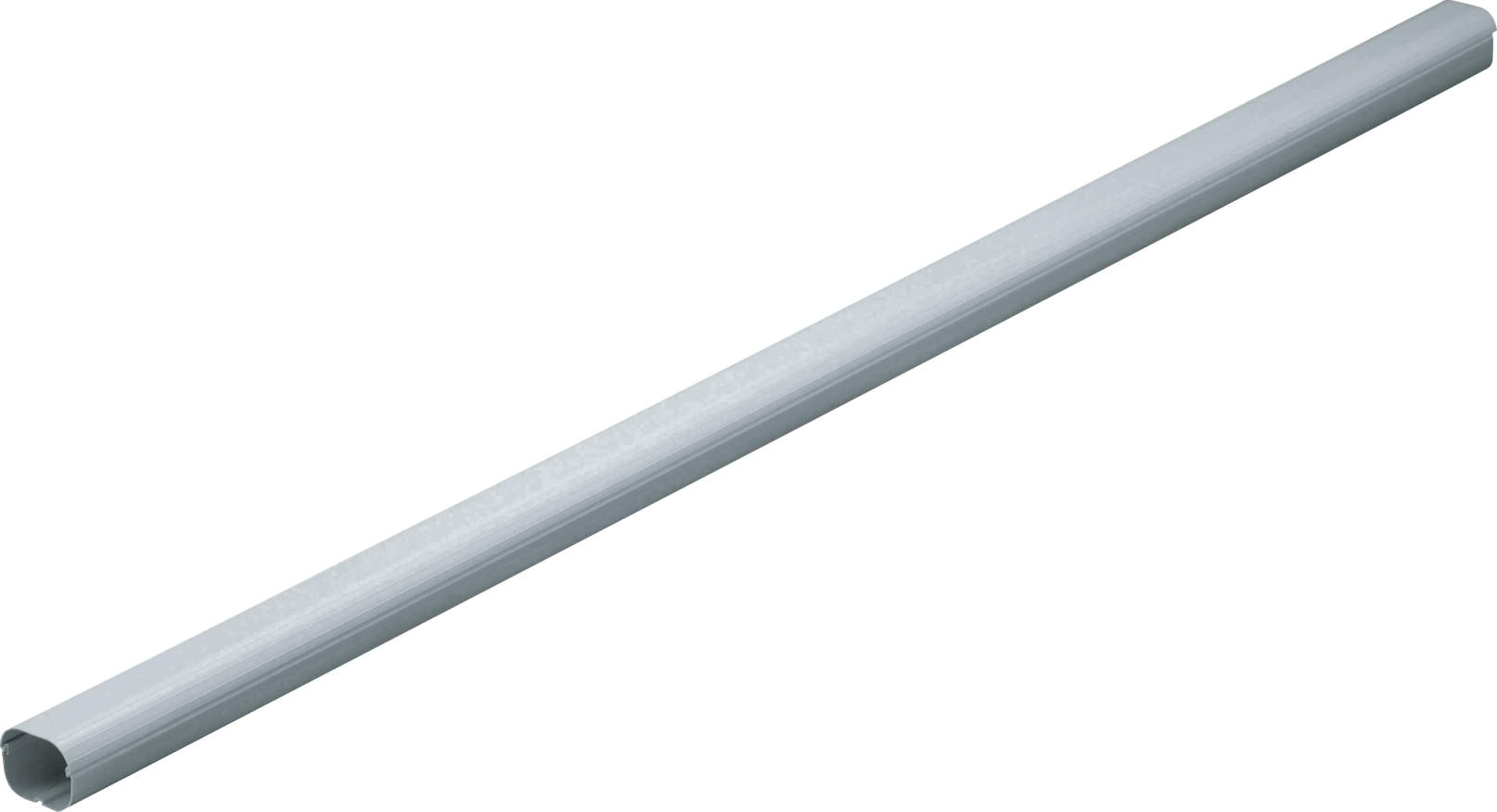

60874004022	SD-77-I	75	63	60	76	56	3	2 1/2	2 3/8	3	2 1/4
60874004023	SD-77-B	75	63	60	76	56	3	2 1/2	2 3/8	3	2 1/4
60874004024	SD-77-K	75	63	60	76	56	3	2 1/2	2 3/8	3	2 1/4
60874004025	SD-77-W	75	63	60	76	56	3	2 1/2	2 3/8	3	2 1/4
60874004026	SD-77-A	75	63	60	76	56	3	2 1/2	2 3/8	3	2 1/4
60874004027	SD-77-G	75	63	60	76	56	3	2 1/2	2 3/8	3	2 1/4

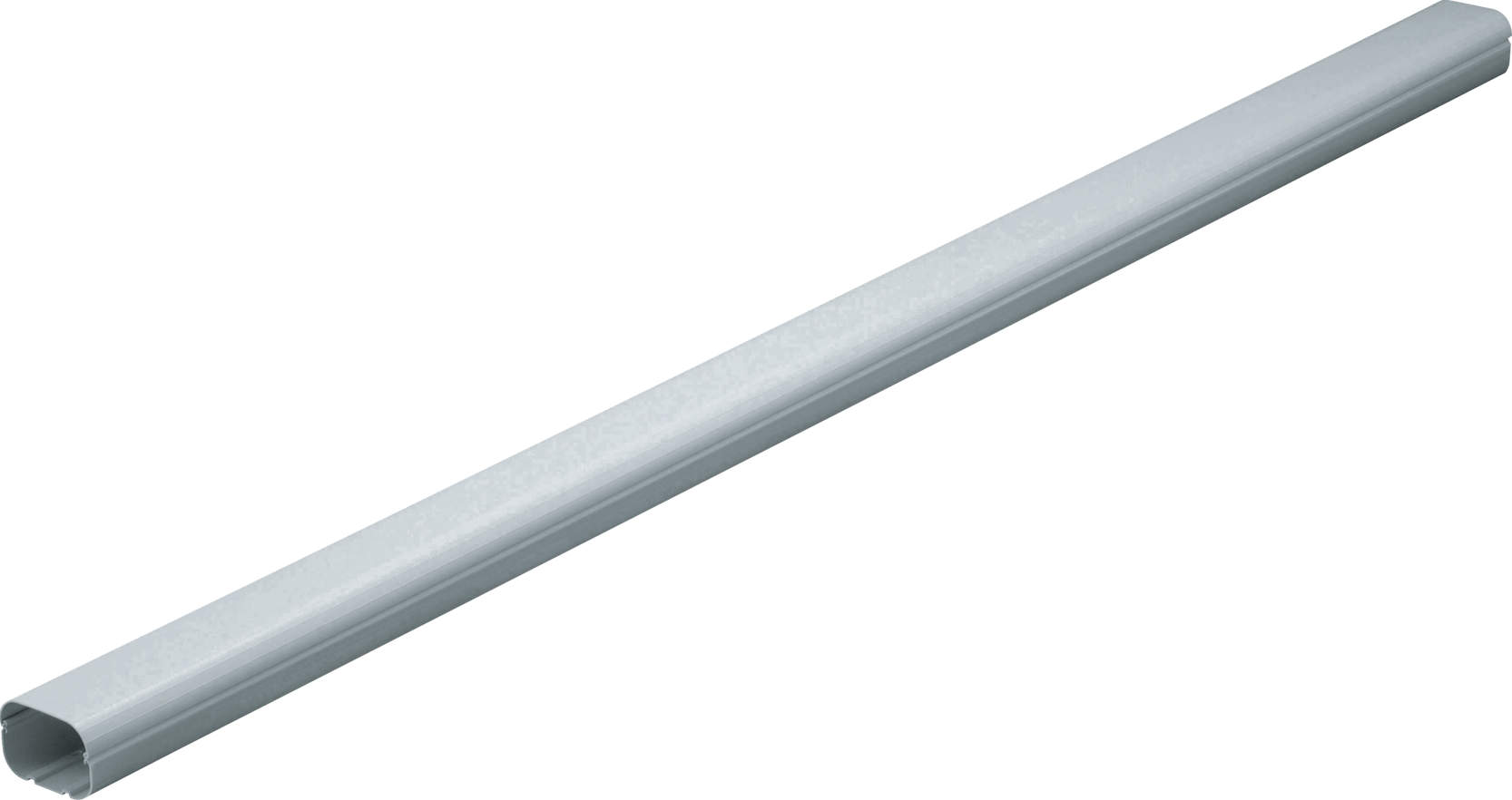

60874004032	SD-100-I	100	70	86	99	64	4	2 7/8	3 1/2	4	2 5/8
60874004033	SD-100-B	100	70	86	99	64	4	2 7/8	3 1/2	4	2 5/8
60874004034	SD-100-K	100	70	86	99	64	4	2 7/8	3 1/2	4	2 5/8
60874004035	SD-100-W	100	70	86	99	64	4	2 7/8	3 1/2	4	2 5/8
60874004036	SD-100-A	100	70	86	99	64	4	2 7/8	3 1/2	4	2 5/8
60874004037	SD-100-G	100	70	86	99	64	4	2 7/8	3 1/2	4	2 5/8

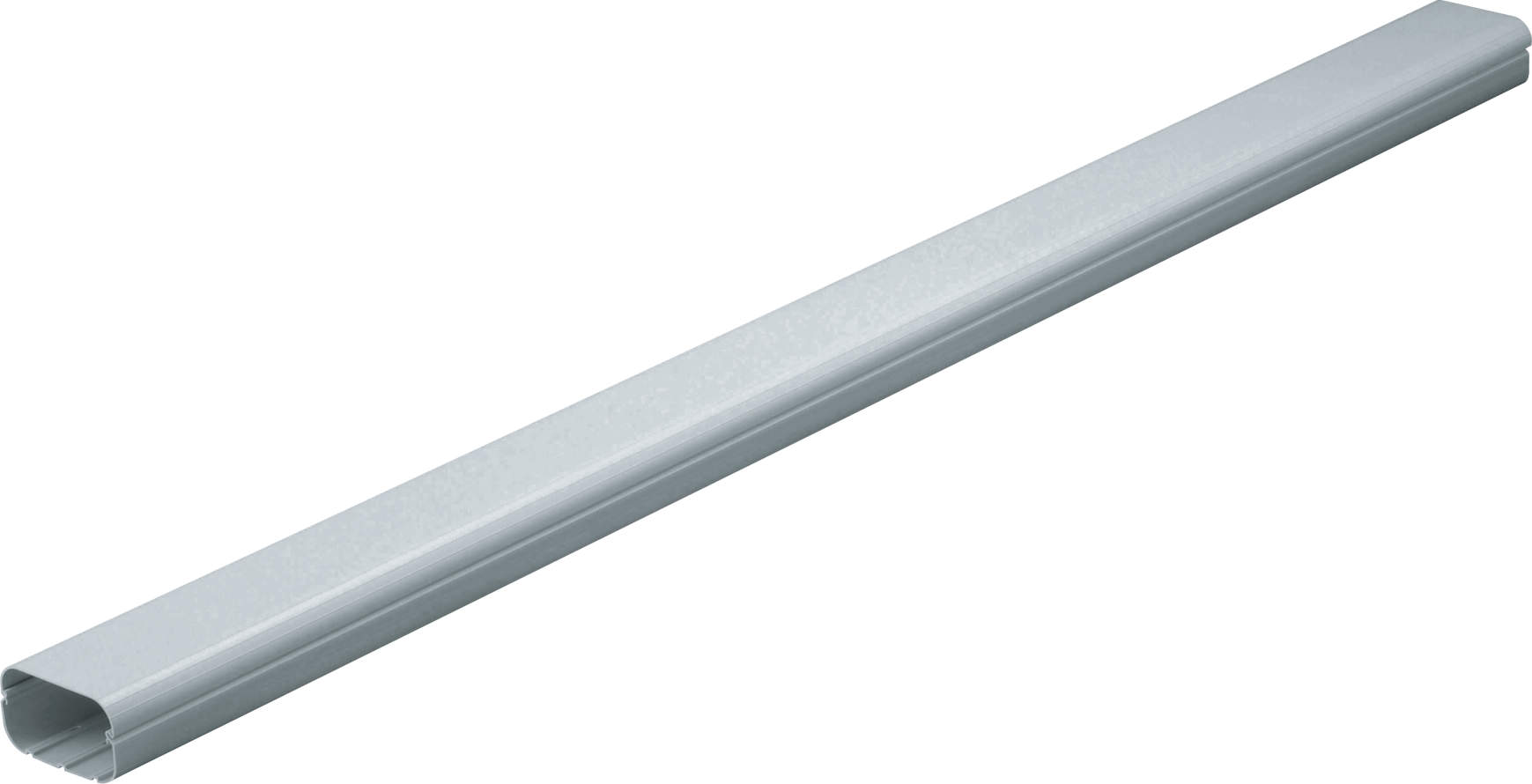

60874004042	SD-140-I	140	80	122	135	73	5 5/8	3 1/4	4 7/8	5 3/8	2 7/8
60874004043	SD-140-B	140	80	122	135	73	5 5/8	3 1/4	4 7/8	5 3/8	2 7/8
60874004044	SD-140-K	140	80	122	135	73	5 5/8	3 1/4	4 7/8	5 3/8	2 7/8
60874004045	SD-140-W	140	80	122	135	73	5 5/8	3 1/4	4 7/8	5 3/8	2 7/8
60874004046	SD-140-G	140	80	122	135	73	5 5/8	3 1/4	4 7/8	5 3/8	2 7/8
