E302-00009
90°Inside Vertical Ell
【RCI】90°INSIDE VERTICAL ELL
Contact Us
Details

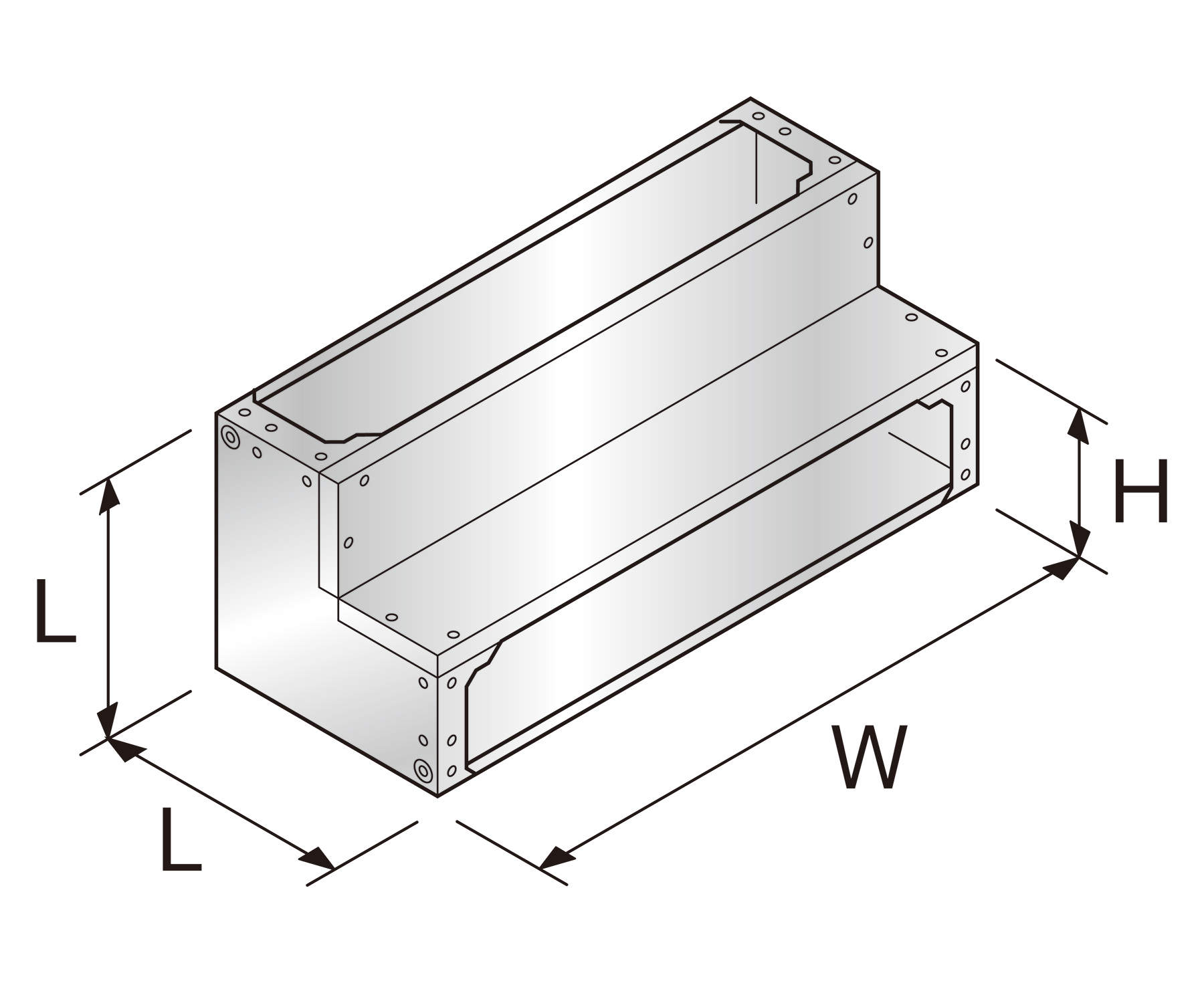

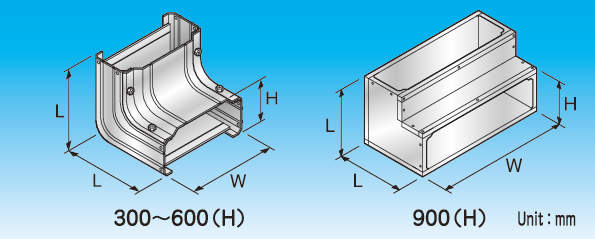

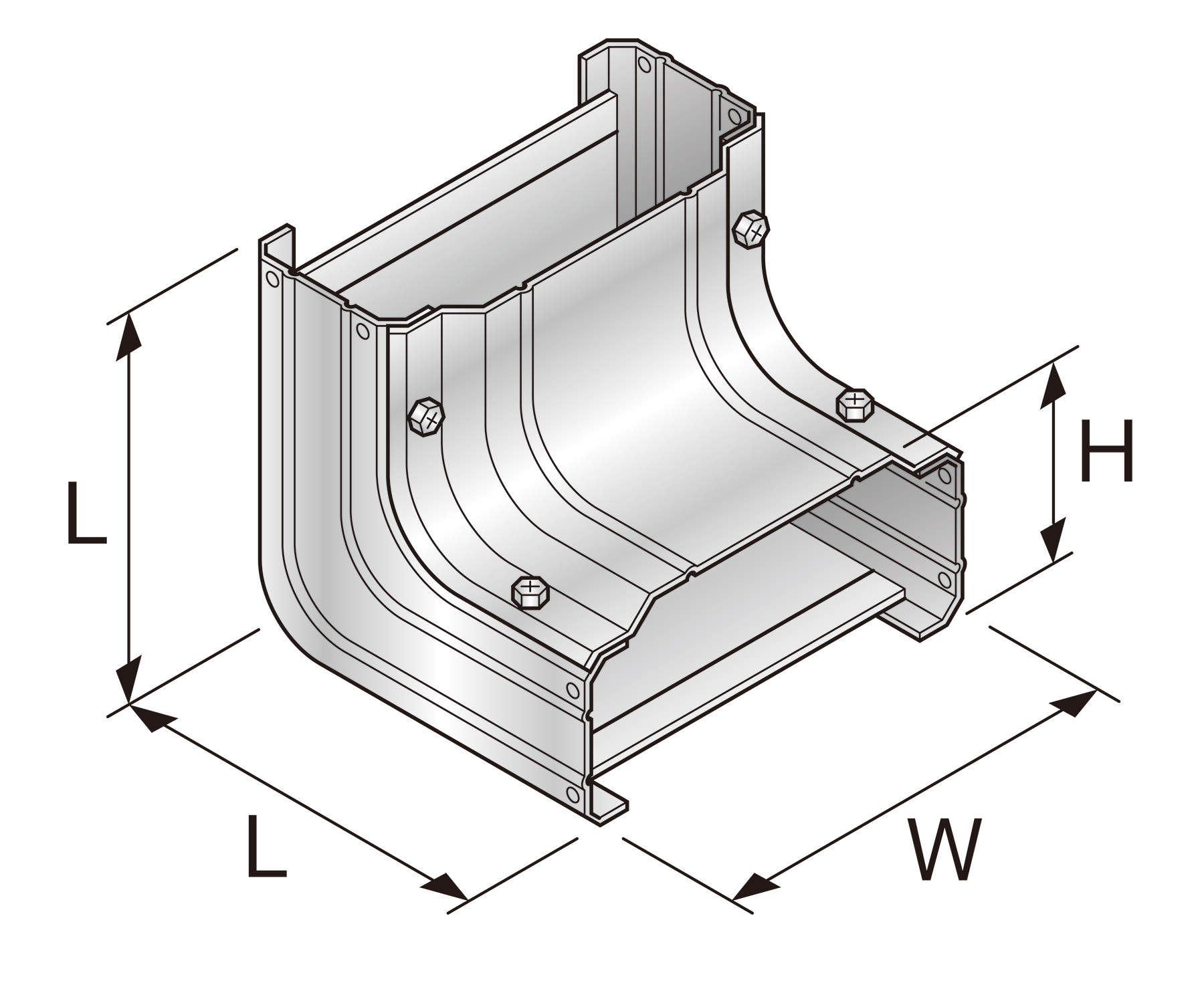

| Code number | Model number | Material | Production | Width (W) | Height (H) | L | Material | Production | Width (W) | Height (H) | L |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 60874085642 | RCI-300-C-ZA | ZAM | - | 600 | 134 | 260 | ZAM | - | 23 5/8 | 5 3/8 | 10 1/4 |
| 60874085652 | RCI-450-C-ZA | ZAM | - | 300 | 254 | 380 | ZAM | - | 11 7/8 | 10 | 15 |
| 60874085662 | RCI-600-C-ZA | ZAM | - | 450 | 254 | 380 | ZAM | - | 17 3/4 | 10 | 15 |
| 60874085672 | RCI-300H-C-ZA | ZAM | - | 600 | 254 | 380 | ZAM | - | 23 5/8 | 10 | 15 |
| 60874085682 | RCI-450H-C-ZA | ZAM | - | 600 | 251 | 380 | ZAM | - | 23 5/8 | 10 | 15 |
| 60874085692 | RCI-600H-C-ZA | ZAM | - | 300 | 131 | 260 | ZAM | - | 11 7/8 | 5 1/4 | 10 1/4 |
| 60874086802 | RCI-300-C-SUS | Stainless | Special Order Only | 450 | 254 | 380 | Stainless | Special Order Only | 17 3/4 | 10 | 15 |
| 60874086812 | RCI-450-C-SUS | Stainless | Special Order Only | 600 | 254 | 380 | Stainless | Special Order Only | 23 5/8 | 10 | 15 |
| 60874086822 | RCI-450H-C-SUS | Stainless | Special Order Only | 600 | 251 | 380 | Stainless | Special Order Only | 23 5/8 | 10 | 15 |
| 60874086832 | RCI-600H-C-SUS | Stainless | Special Order Only | 300 | 131 | Stainless | Special Order Only | 11 7/8 | 5 1/4 | ||
| 60874089055 | RCI-900-ZA | ZAM | Special Order Only | 300 | 251 | ZAM | Special Order Only | 11 7/8 | 10 | ||
| 60874089305 | RCI-900H-ZA | ZAM | Special Order Only | 300 | 131 | ZAM | Special Order Only | 11 7/8 | 5 1/4 |
- OBuild to order
- EEnd production
- SAs long as stock
