【RSS】SLIDE COUPLER

E302-00018

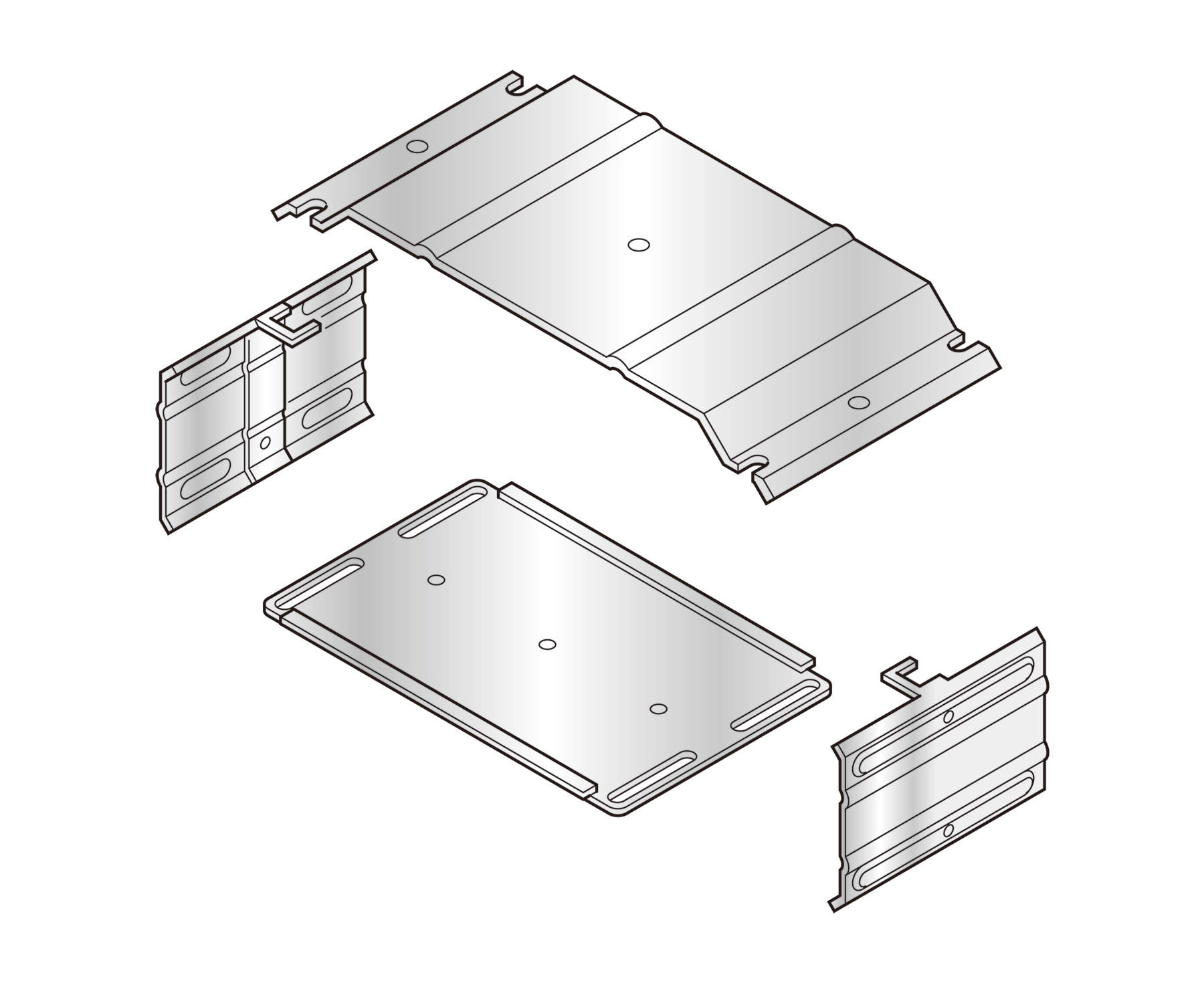

Slide Adjustable Coupler

【RSS】SLIDE COUPLER

Installation Materials for Air-Conditioners 2020 25

Contact Us

Contact Us
Office network

Details

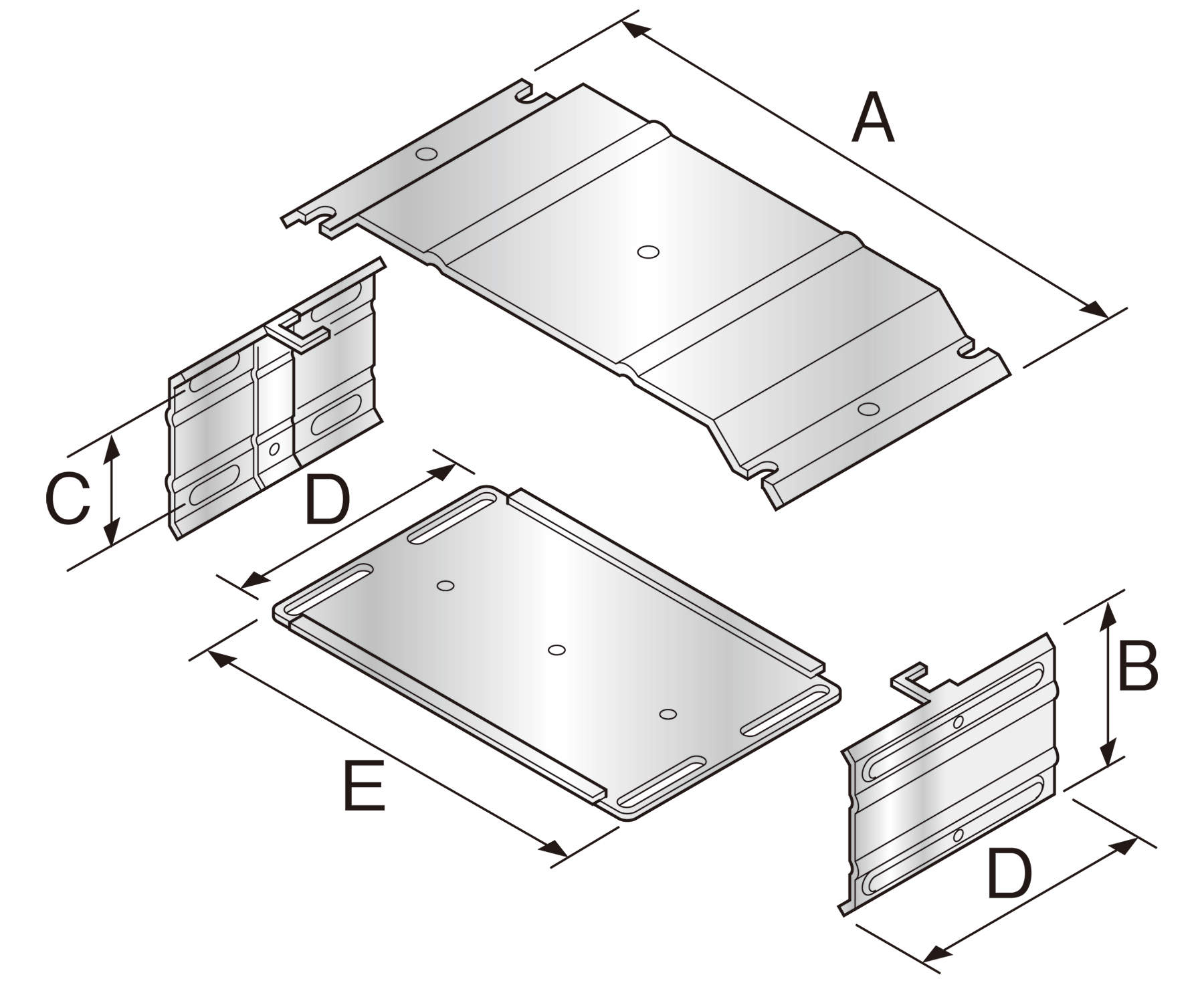

Code number Model number Material Production Corresponding duct length Material Production Corresponding duct length A B C A B C D E D E
60874084597 RSS-300H-1-A-ZA ZAM - For 0.3m ZAM - For 11 7/8
60874084607 RSS-300H-2-A-ZA ZAM - ZAM - For 11 7/8
60874084617 RSS-300H-3-A-ZA ZAM - For 0.3m ZAM - For 11 7/8
60874084937 RSS-900-1-A-ZA ZAM Special Order Only For 0.5m ZAM Special Order Only For 19 3/4
60874084947 RSS-900-2-A-ZA ZAM Special Order Only For 0.5m ZAM Special Order Only For 19 3/4
60874084957 RSS-900-3-A-ZA ZAM Special Order Only For 0.5m ZAM Special Order Only For 19 3/4
60874084967 RSS-900H-1-A-ZA ZAM Special Order Only For 2.0m ZAM Special Order Only For 78 3/4
60874084977 RSS-900H-2-A-ZA ZAM Special Order Only For 2.0m ZAM Special Order Only For 78 3/4
60874084987 RSS-900H-3-A-ZA ZAM Special Order Only For 2.0m ZAM Special Order Only For 78 3/4
60874085637 RSS-300-1-A-ZA ZAM - For 1.0m ZAM - For 39 3/8
60874085647 RSS-300-2-A-ZA ZAM - For 1.0m ZAM - For 39 3/8
60874085657 RSS-300-3-A-ZA ZAM - For 1.0m ZAM - For 39 3/8
60874085667 RSS-450-1-A-ZA ZAM - For 0.5m ZAM - For 19 3/4
60874085677 RSS-450-2-A-ZA ZAM - For 0.5m ZAM - For 19 3/4
60874085687 RSS-450-3-A-ZA ZAM - For 0.5m ZAM - For 19 3/4
60874085697 RSS-600-1-A-ZA ZAM - For 0.5m ZAM - For 19 3/4
60874085707 RSS-600-2-A-ZA ZAM - For 2.0m ZAM - For 78 3/4
60874085717 RSS-600-3-A-ZA ZAM - For 0.3m ZAM - For 39 3/8
60874085727 RSS-450H-1-A-ZA ZAM - For 0.3m ZAM - For 11 7/8
60874085737 RSS-450H-2-A-ZA ZAM - ZAM - 262 248 389 10 3/8 9 7/8 15 3/8
60874085747 RSS-450H-3-A-ZA ZAM - ZAM - 412 398 539 16 1/4 15 3/4 21 1/4
60874085757 RSS-600H-1-A-ZA ZAM - ZAM - 562 548 689 22 1/4 21 5/8 27 1/4
60874085767 RSS-600H-2-A-ZA ZAM - ZAM - 262 248 389 10 3/8 9 7/8 15 3/8
60874085777 RSS-600H-3-A-ZA ZAM - ZAM - 412 398 539 16 1/4 15 3/4 21 1/4
60874087137 RSS-300-1-A-SUS Stainless Special Order Only Stainless Special Order Only 562 548 689 22 1/4 21 5/8 27 1/4
60874087147 RSS-300-2-A-SUS Stainless Special Order Only Stainless Special Order Only 248 262 189 9 7/8 10 3/8 7 1/2
60874087157 RSS-300-3-A-SUS Stainless Special Order Only Stainless Special Order Only 398 412 313 15 3/4 16 1/4 12 3/8
60874087167 RSS-450-1-A-SUS Stainless Special Order Only Stainless Special Order Only 548 562 376 21 5/8 22 1/4 14 7/8
60874087177 RSS-450-2-A-SUS Stainless Special Order Only Stainless Special Order Only 248 262 189 9 7/8 10 3/8 7 1/2
60874087187 RSS-450-3-A-SUS Stainless Special Order Only Stainless Special Order Only 398 412 313 15 3/4 16 1/4 12 3/8
60874087227 RSS450H-1-A-SUS Stainless Special Order Only For 1.0m Stainless Special Order Only 548 562 376 21 5/8 22 1/4 14 7/8
60874087237 RSS450H-2-A-SUS Stainless Special Order Only Stainless Special Order Only 578 530 262 22 7/8 20 7/8 10 3/8 420 248 16 5/8 9 7/8
60874087247 RSS450H-3-A-SUS Stainless Special Order Only Stainless Special Order Only 726 680 412 28 5/8 26 7/8 16 1/4 570 398 22 1/2 15 3/4
60874087257 RSS600H-1-A-SUS Stainless Special Order Only Stainless Special Order Only 878 830 562 34 5/8 32 3/4 22 1/4 720 548 28 3/8 21 5/8
60874087267 RSS600H-2-A-SUS Stainless Special Order Only Stainless Special Order Only 578 530 262 22 7/8 20 7/8 10 3/8 420 248 16 5/8 9 7/8
60874087277 RSS600H-3-A-SUS Stainless Special Order Only Stainless Special Order Only 728 680 412 28 3/4 26 7/8 16 1/4 570 398 22 1/2 15 3/4
  • OBuild to order
  • EEnd production
  • SAs long as stock
