E402-00007

【DL-H】DRAIN CHANNEL ADAPTOR

Installation Materials for Air-Conditioners 2020 41

Features

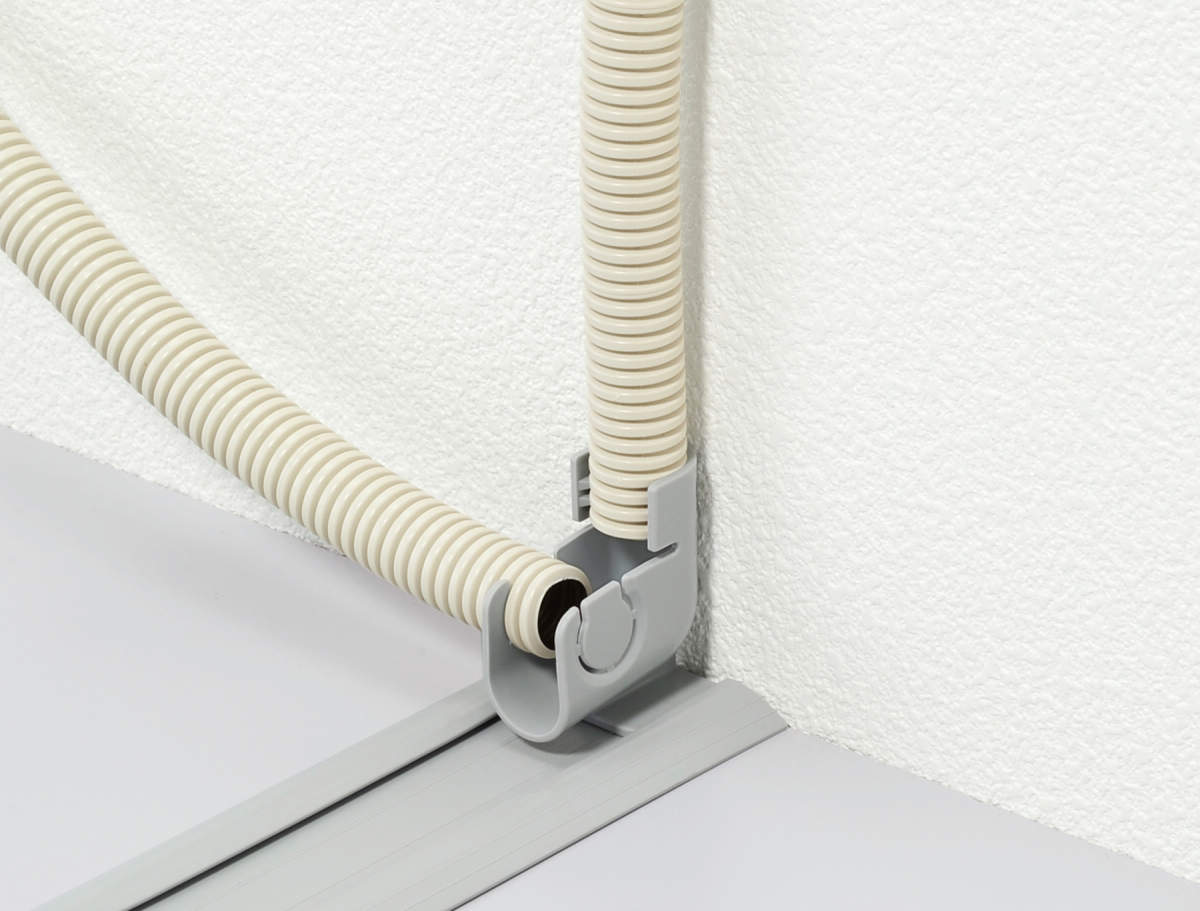

Clips end of Drain Hose into Drain Channel without adhesives.

Also applicable to Drain Hose of outdoor unit.

Material ・・・ PP

Color ・・・ Gray

Temperature Range ・・・ -20℃～60℃

Code number	Model number	Applicable drain hose and vinyl pipe	A	B	C	D	Applicable drain hose and vinyl pipe	A	B	C	D	Applicable vinyl pipe	Applicable vinyl pipe
60874023441	DL-H13N-G	DH-14/DHQ-14 DH-16/DHQ-16 VP(OD=18mm)	50	44	21.4	R9	DH-14/DHQ-14 DH-16/DHQ-16 VP(OD=18mm)	2	1 3/4	7/8	R3/8
60874023451	DL-H20N-G		58	50	30	R13		2 3/8	2	1 1/4	R1/2	VP(OD=26mm)	VP(OD=26mm)
