【DSH-UP】DSH-UP SERIES

E404-00009

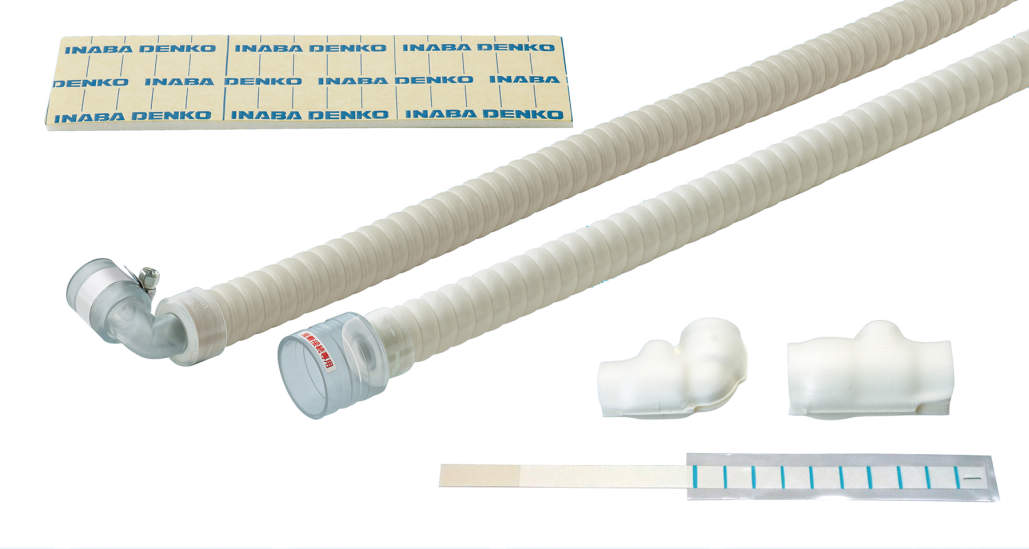

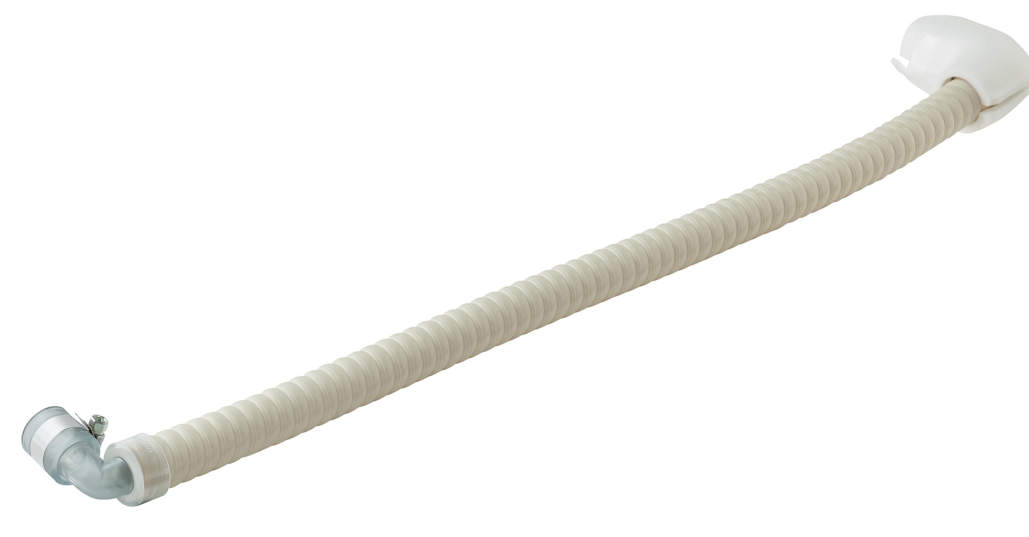

Thermal Insulated Drain Hose with coupling joint for air conditioner.

【DSH-UP】DSH-UP SERIES

Specifications

Thermal Insulated Drain Hose : PVC (Insulation : Foamed PE)

Coupling Joint : PVC

Hose Band : SUS

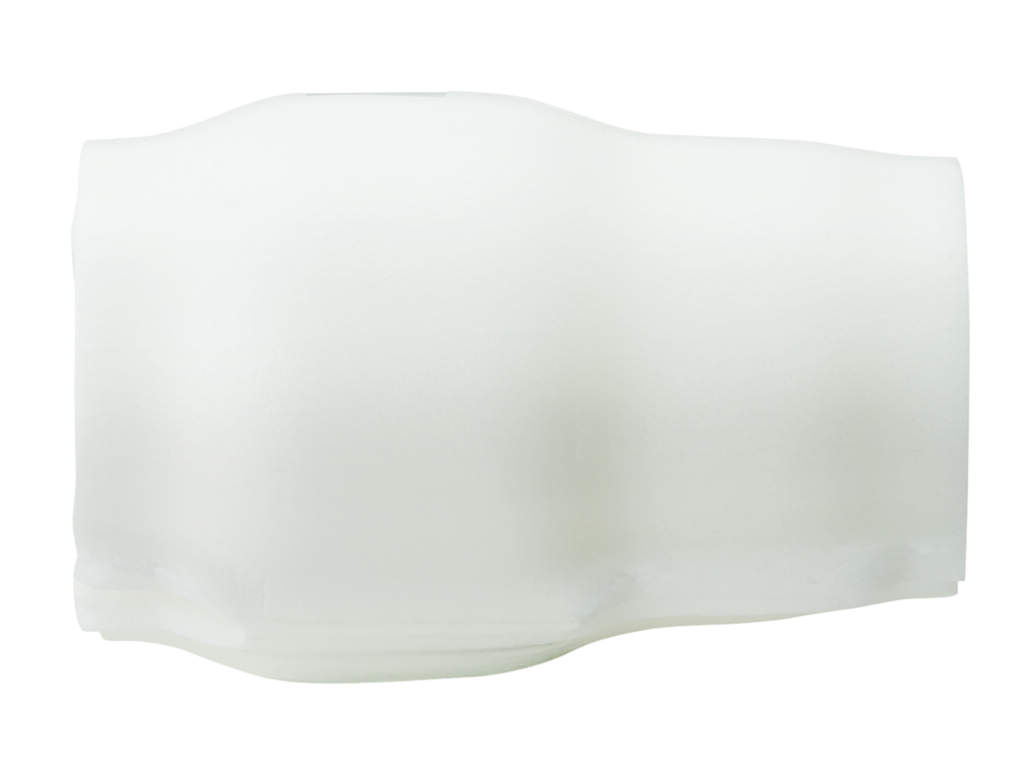

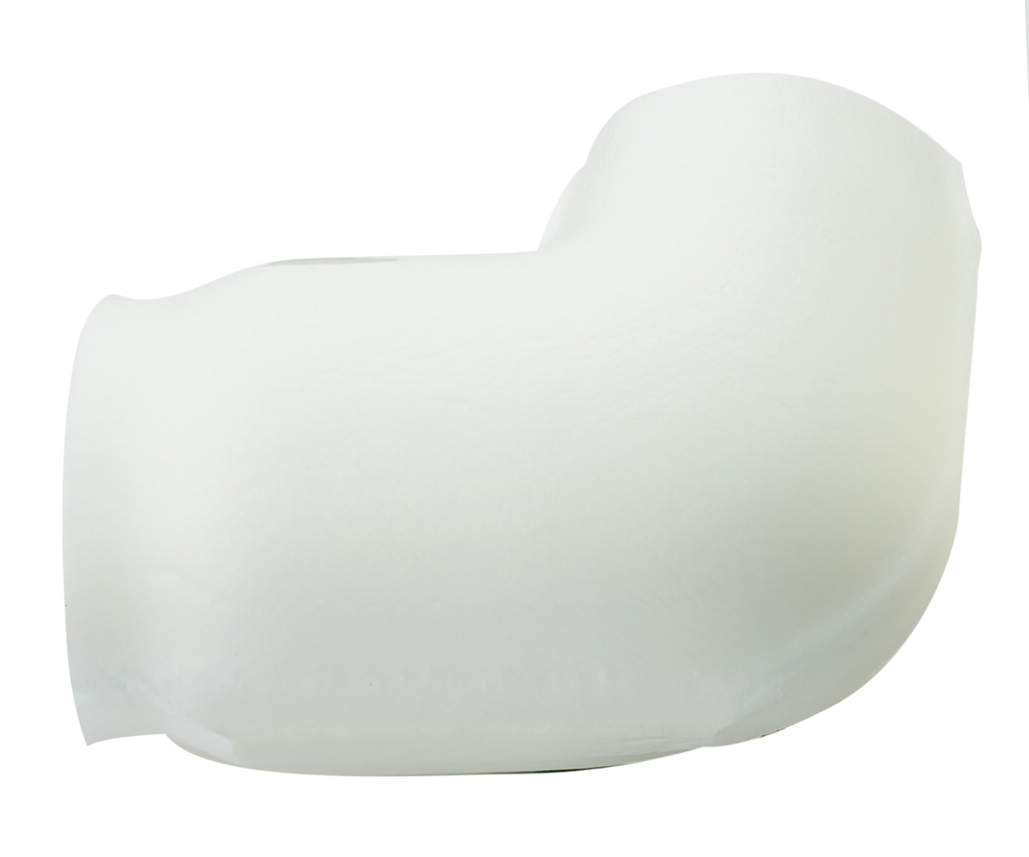

Thermal Insulation Cover : Foamed PE

Thermal Insulation Adhesive Tape : Foamed PE (t=3)

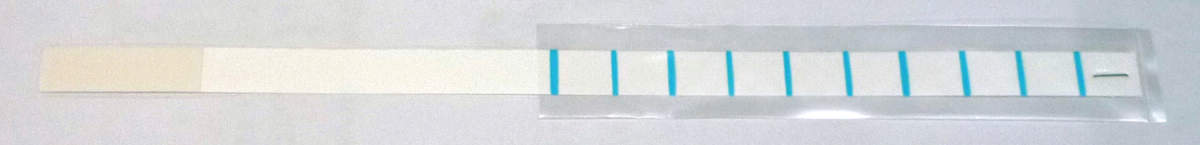

Water Leakage Checking Sheet : Paper (Sheet Part) / PE (Inspection Bag)

Caution

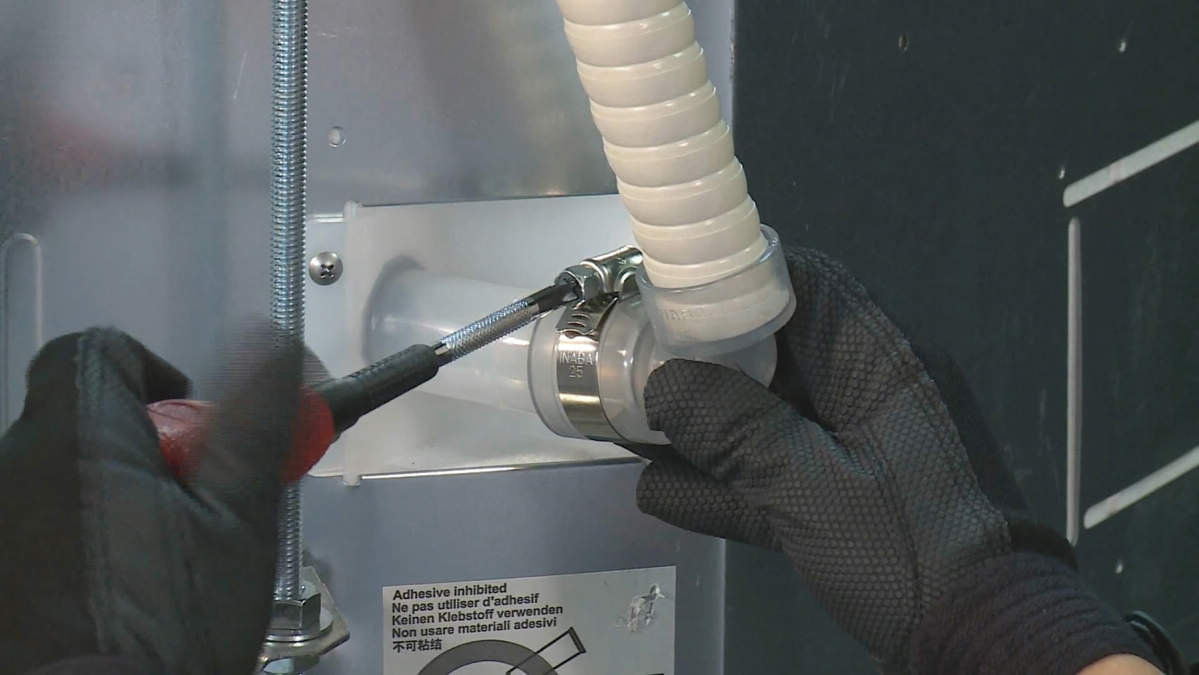

Besides to connection by Hose Band, connection by adhesive is also possible.

Contact Us

Details

dsf-up_es_fig_e.eps
dsh-up_e30e_fig_e.eps
dsh-up_e30r_fig_e.eps
dsh-up_e30s_fig_e.eps
dsh-up_ee_fig_e.eps
dsh-up_er_fig_e.eps
Code number Model number Type Length of hose
(mm)
A
(Applicable Vinyl pipe)
B
(Applicable Vinyl pipe)
Type Length of hose
(in)
A
(Applicable Vinyl pipe)
B
(Applicable Vinyl pipe)
60874008360 DSH-UP20E20S-07 【m】Elbow & Strainght ES 700 26 26 【i】Elbow & Strainght ES 27 5/8 1 1/8 1 1/8
60874008361 DSH-UP20E25S-07 【m】Elbow & Strainght ES 700 26 32 【i】Elbow & Strainght ES 27 5/8 1 1/8 1 3/8
60874008362 DSH-UP25E20S-07 【m】Elbow & Strainght ES 700 32 26 【i】Elbow & Strainght ES 27 5/8 1 3/8 1 1/8
60874008363 DSH-UP25E25S-07 【m】Elbow & Strainght ES 700 32 32 【i】Elbow & Strainght ES 27 5/8 1 3/8 1 3/8
60874008364 DSH-UP20E20E-07 【m】Elbow & Strainght EE 700 26 26 【i】Elbow & Strainght EE 27 5/8 1 1/8 1 1/8
60874008365 DSH-UP20E25E-07 【m】Elbow & Strainght EE 700 26 32 【i】Elbow & Strainght EE 27 5/8 1 1/8 1 3/8
60874008366 DSH-UP25E25E-07 【m】Elbow & Strainght EE 700 32 32 【i】Elbow & Strainght EE 27 5/8 1 3/8 1 3/8
60874008367 DSH-UP20E20R-07 【m】Elbow & Elbow ER 700 26 26 【i】Elbow & Elbow ER 27 5/8 1 1/8 1 1/8
60874008368 DSH-UP20E25R-07 【m】Elbow & Elbow ER 700 26 32 【i】Elbow & Elbow ER 27 5/8 1 1/8 1 3/8
60874008369 DSH-UP25E25R-07 【m】Elbow & Elbow ER 700 32 32 【i】Elbow & Elbow ER 27 5/8 1 3/8 1 3/8
60874008370 DSH-UP20E20S-10 【m】Elbow & Strainght ES 1000 26 26 【i】Elbow & Strainght ES 39 3/8 1 1/8 1 1/8
60874008371 DSH-UP20E25S-10 【m】Elbow & Strainght ES 1000 26 32 【i】Elbow & Strainght ES 39 3/8 1 1/8 1 3/8
60874008372 DSH-UP25E20S-10 【m】Elbow & Strainght ES 1000 32 26 【i】Elbow & Strainght ES 39 3/8 1 3/8 1 1/8
60874008373 DSH-UP25E25S-10 【m】Elbow & Strainght ES 1000 32 32 【i】Elbow & Strainght ES 39 3/8 1 3/8 1 3/8
60874008374 DSH-UP20E20E-10 【m】Elbow & Strainght EE 1000 26 26 【i】Elbow & Strainght EE 39 3/8 1 1/8 1 1/8
60874008375 DSH-UP20E25E-10 【m】Elbow & Strainght EE 1000 26 32 【i】Elbow & Strainght EE 39 3/8 1 1/8 1 3/8
60874008376 DSH-UP25E25E-10 【m】Elbow & Strainght EE 1000 32 32 【i】Elbow & Strainght EE 39 3/8 1 3/8 1 3/8
60874008377 DSH-UP20E20R-10 【m】Elbow & Elbow ER 1000 26 26 【i】Elbow & Elbow ER 39 3/8 1 1/8 1 1/8
60874008378 DSH-UP20E25R-10 【m】Elbow & Elbow ER 1000 26 32 【i】Elbow & Elbow ER 39 3/8 1 1/8 1 3/8
60874008379 DSH-UP25E25R-10 【m】Elbow & Elbow ER 1000 32 32 【i】Elbow & Elbow ER 39 3/8 1 3/8 1 3/8
  • OBuild to order
  • EEnd production
