Features
-Split construction ensures ease of installation.
-Use in combination with FP-60N and FP-75N.
-Locking tab snaps off to provide holes for extra mounting screws.
-The scored line allows for easy trimming of the flange, enabling it to fit seamlessly into tight spaces near pillars and ceilings.
Specifications
Material ・・・ PP
Color ・・・ White, Ivory
Caution
-Joint, fixing and penetration points must be weatherproofed with caulk or putty.
Donwload data
-
製品画像
-
製品画像
Contact Us
Details
| Code number | Model number | A | B | C（I.D.） | D（O.D.） | E（Thickness） | A | B | C（I.D.） | D（O.D.） | E（Thickness） |
|---|---|---|---|---|---|---|---|---|---|---|---|

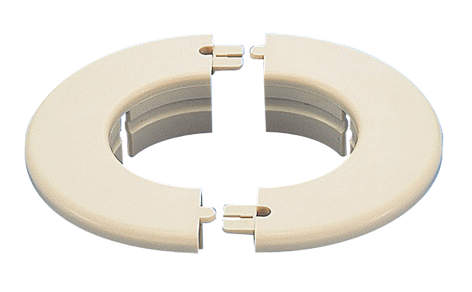

| 60874003352 | WC-60N-I | 112 | 96 | 57 | 61.5 | 6 | 4 1/2 | 3 7/8 | 2 1/4 | 2 1/2 | 1/4 |
| 60874003362 | WC-65N-I | 117 | 98 | 62 | 66.5 | 6 | 4 5/8 | 3 7/8 | 2 1/2 | 2 5/8 | 1/4 |
| 60874003372 | WC-75N-I | 127 | 105 | 71 | 75.5 | 6 | 5 | 4 1/4 | 2 7/8 | 3 | 1/4 |

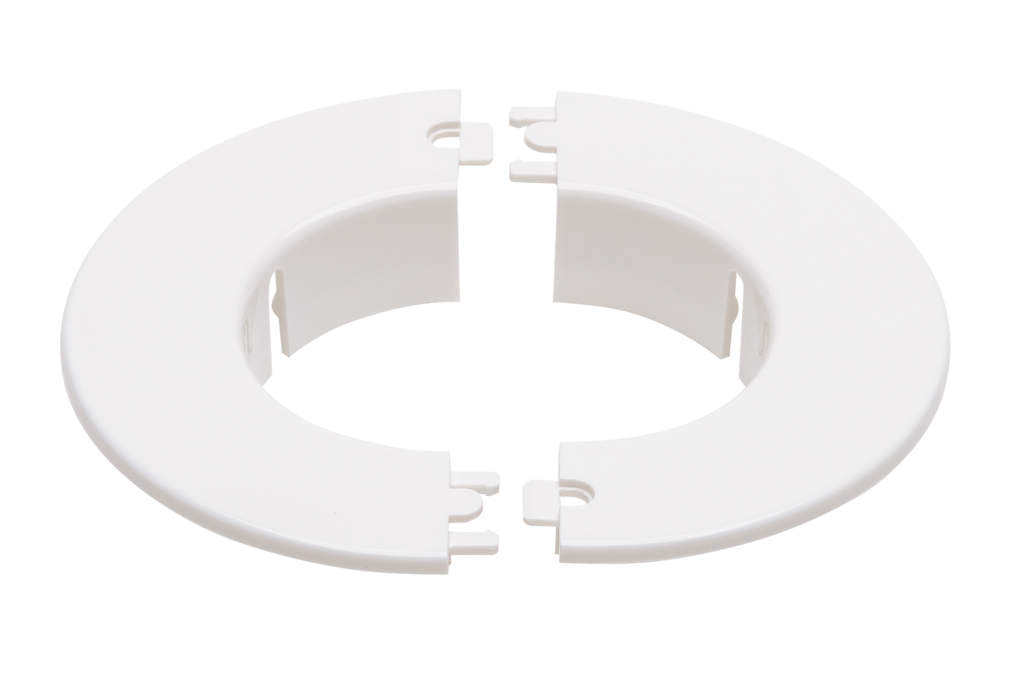

| 60874003385 | WC-65-W | 117 | 98 | 62 | 66.5 | 3 | 4 5/8 | 3 7/8 | 2 1/2 | 2 5/8 | 1/8 |
- OBuild to order
- EEnd production
- SAs long as stock
