Feature
Lightweight and durable, an excelent load-bearing capacity INABA DENKO's condenser riser.
-Choose from 8 size, depending on the unit size or the installation conditions.
-Weather resistant PVC condenser riser PLAROCK
-Integral top channel allows easy adjustment of bolts to suit condenser fixing points and permanently installs condenser to eliminate slippage due to vibration.
-Specially designed open structure permits PLAROCK to withstand outdoor temperatures as high as 50 degree
Specifications
Material ・・・ PVC
Caution
-Use only within temperature range of -10℃ to 50℃ at the surface of product.
Donwload data
-
製品画像
-
製品画像
-
製品画像
-
製品画像
Contact Us
Details

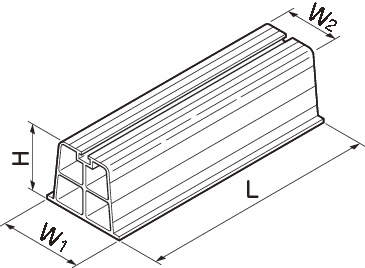

| Code number | Model number | 【ot】Series | 【ot】Color | Allowable load（N[kgf]） | Dimension L×W1×W2×H（mm） | 【ot】Attached bolt | Dimension L×W1×W2×H（inch） | Allowable load (lbs) | Allowable load(lbs) |
|---|---|---|---|---|---|---|---|---|---|
| 60874014100 | PR-1800P | 450 | Black | 17,652［1,800］ | 1,800×205×137×154 | N/A | 70 7/8×8 1/8×5 3/8×6 | 3969 | |
| 60874014110 | PR-450P | 450 | Black | 4,413［450］ | 450×205×137×154 | HDZ | 70 7/8×5 7/8×4 3/8×4 3/4 | 3528 | |

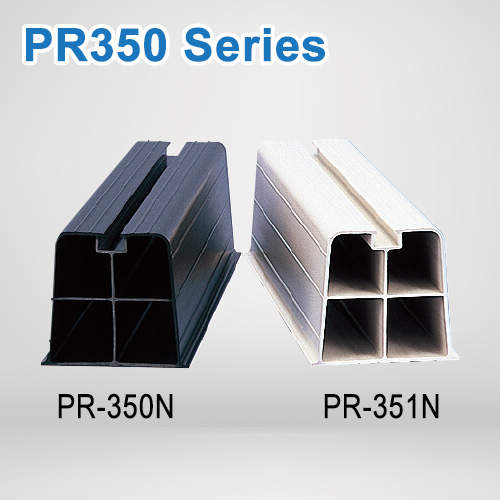

| 60874014260 | PR-350N | 350 | Black | 1,372［140］ | 360×100×80×95 | Dacrotized | 14 1/8×3 7/8×3 1/8×3 3/4 | 308 | |
| 60874014270 | PR-350N-M | 350 | Black | 1,765［180］ | 450×100×80×95 | Dacrotized | 17 3/4×3 7/8×3 1/8×3 3/4 | 397 | |
| 60874014280 | PR-350N-L | 350 | Black | 3,922［400］ | 1,000×100×80×95 | N/A | 39 3/8×3 7/8×3 1/8×3 3/4 | 880 | |
| 60874014310 | PR-351N-I | 350 | Ivory | 1,372［140］ | 360×100×80×95 | Dacrotized | 14 1/8×3 7/8×3 1/8×3 3/4 | 308 | |
| 60874014320 | PR-351N-M | 350 | Ivory | 1,765［180］ | 450×100×80×95 | Dacrotized | 17 3/4×3 7/8×3 1/8×3 3/4 | 397 | |

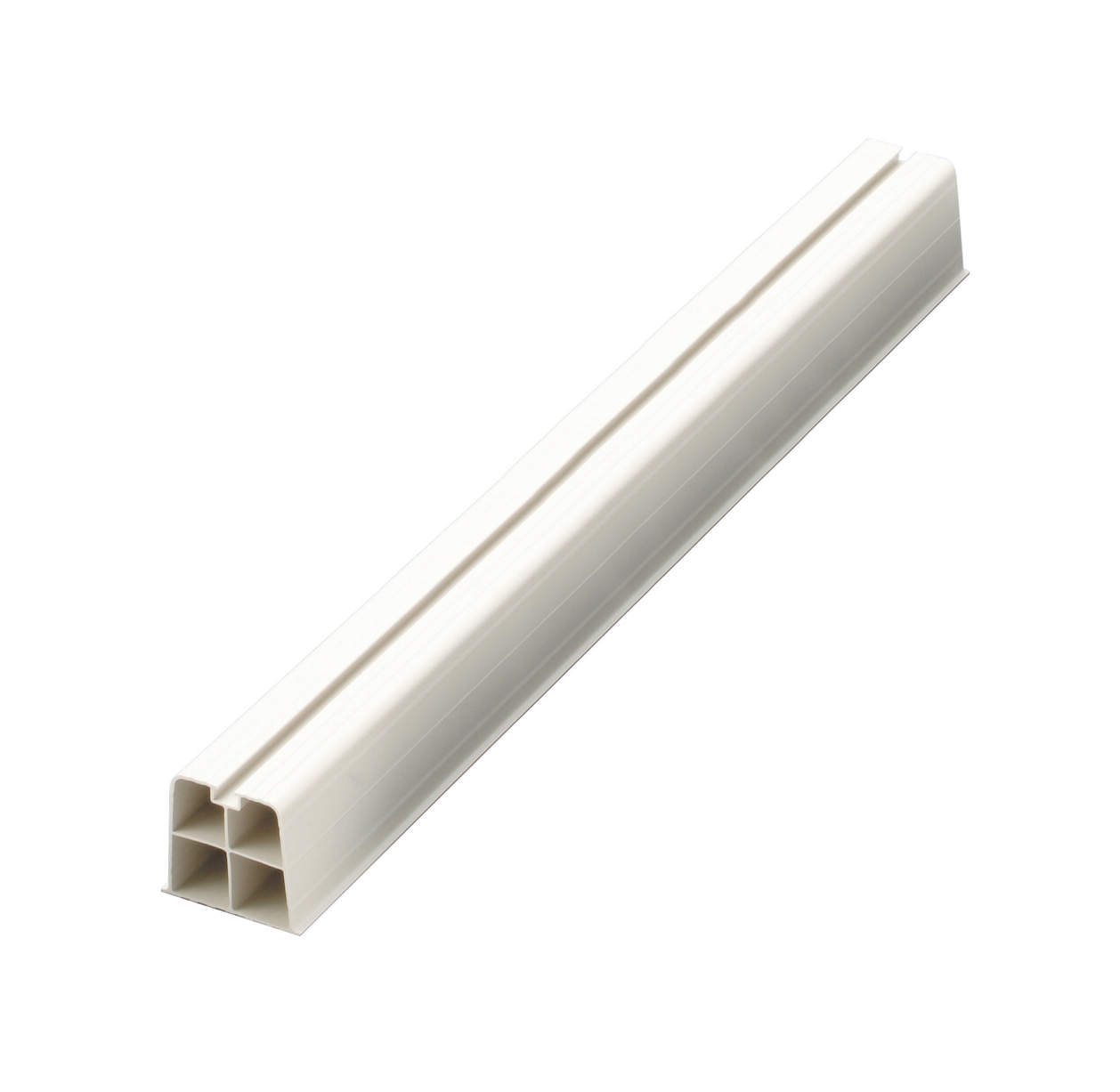

| 60874014330 | PR-351N-L | 350 | Ivory | 3,922［400］ | 1,000×100×80×95 | N/A | 39 3/8×3 7/8×3 1/8×3 3/4 | 880 | |
| 60874014340 | PR-151 | 150 | Ivory | 1,372［140］ | 360×86×80×40 | Dacrotized | 14 1/8×3 3/8×3 1/8×1 5/8 | 308 | |
| 60874014360 | PR-400 | 400 | Black | 3,922［400］ | 450×150×110×120 | HDZ | 17 3/4×5 7/8×4 3/8×4 3/4 | 880 | |
| 60874014390 | PR-400-L | 400 | Black | 15,691［1,600］ | 1,800×150×110×120 | N/A | 17 3/4×8 1/8×5 3/8×6 | 992 | |
| 60874014410 | PR-401-I | 400 | Ivory | 3,922［400］ | 450×150×110×120 | HDZ | 17 3/4×5 7/8×4 3/8×4 3/4 | 880 |
- OBuild to order
- EEnd production
- SAs long as stock
