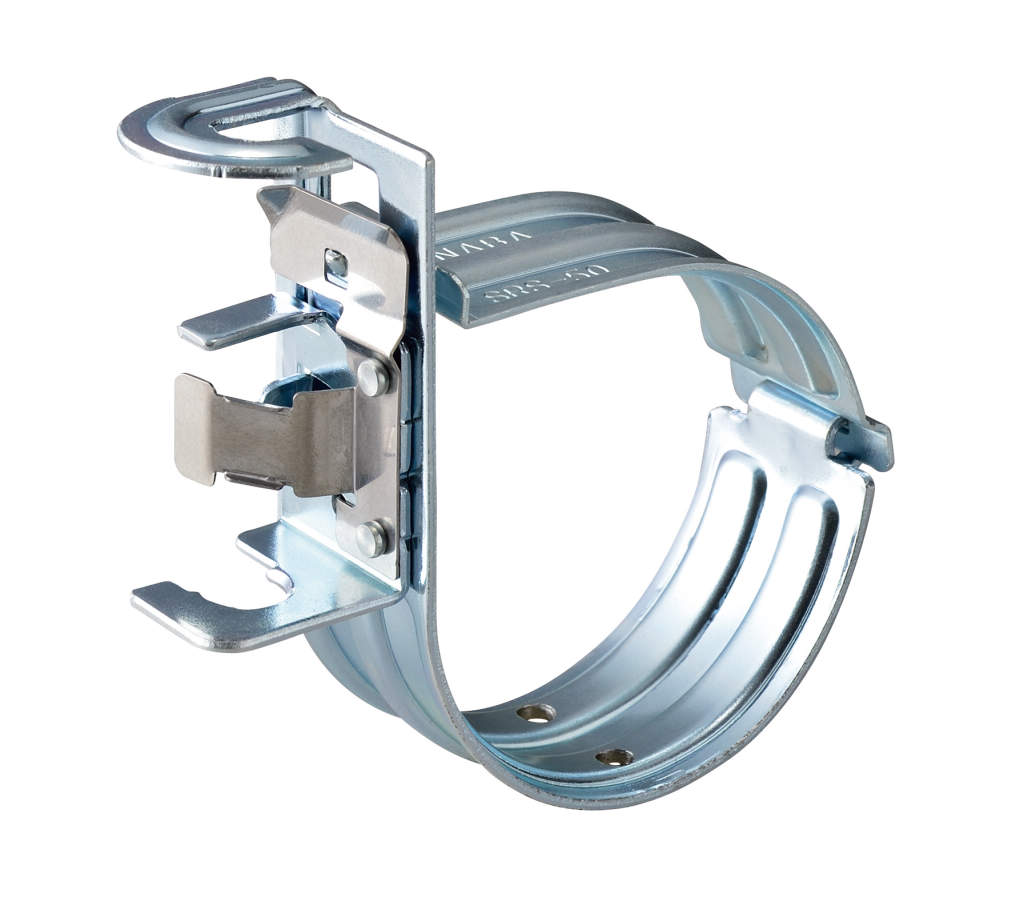

【SRS】SUPERLOCK S TYPE

E701-00002

For W3/8" Threaded Rod - One Side Clip

【SRS】SUPERLOCK S TYPE

Features

One-touch attachment to W3/8" threaded rod

Hinge mechanism allows temporary placement of piping.

Height adjustment to rod is easy.

Specifications

Surface treatment ・・・ Unichrome plating

Caution

For indoor use only.

Do not use for other than W3/8" threaded rod.

Contact Us

Details

SRS_e.flg.eps
Code number Model number 【ot】Applicable pipe size
Vinyl pipe size + Insulation size(PMQ)
【ot】Applicable pipe size
Neo drain pipe
【ot】Applicable pipe size
Vinyl pipe
Applicable pipe size
Insulated copper tube
10mm
Applicable pipe size
Insulated copper tube
20mm
Allowable static load L1 L2 H A Body thickness(mm)(t1) Clip thickness(mm)(t1) Applicable pipe size
Insulated copper tube
10mm
Applicable pipe size
Insulated copper tube
20mm

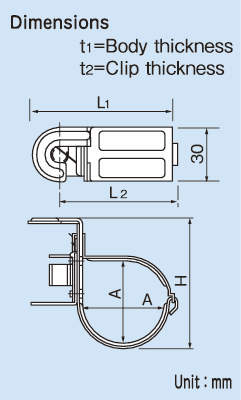

L1 L2 H A Body thickness(inch)(t1) Clip thickness(inch)(t1)
60874055890 SRS-25 - 25 12.7 196N(20kgf) 74 59 82 32 1.2 1 1/2 3 2 3/8 3 1/4 1 3/8 1/16 1/16
60874055900 SRS-35 VP16+(PMQ-16) NDD-25N 22.22 196N(20kgf) 81 69 83 44 1.2 1 7/8 3 1/4 2 3/4 3 3/8 1 3/4 1/16 1/16
60874055910 SRS-40 VP20+(PMQ-20) NDD-304N 40 28.58 9.52 196N(20kgf) 85 73 85 48 1.2 1 1 1/8 3/8 3 3/8 2 7/8 3 3/8 2 1/16 1/16
60874055920 SRS-50 VP30+(PMQ-30) NDD-404N 50 38.1 22.22 196N(20kgf) 97 85 91 60 1.6 1 1 1/2 7/8 3 7/8 3 3/8 3 5/8 2 3/8 1/16 1/16
60874055930 SRS-30 VP13+(PMQ-13) NDD-20N 30 19.05 196N(20kgf) 75 63 80 38 1.2 1 3/4 3 2 1/2 3 1/4 1 1/2 1/16 1/16
60874055940 SRS-45 VP25+(PMQ-25) 31.75 12.7 196N(20kgf) 89 77 87 52 1.2 1 1 1/4 1/2 3 5/8 3 1/8 3 1/2 2 1/8 1/16 1/16
60874055950 SRS-65 VP50+(PMQ-50) NDD-504N 50.8 38.1 196N(20kgf) 118 106 127 80 1.6 1 2 1 1/2 4 3/4 4 1/4 5 3 1/4 1/16 1/16
60874055960 SRS-60 VP40+(PMQ-40) - - 44.5 28.58 196N(20kgf) 94 94 98 68 1.6 1 1 3/4 1 1/8 3 3/4 3 3/4 3 7/8 2 3/4 1/16 1/16
