【SF】FLEXIBLE BEND WITH END CUFFS

E201-00025

Flexible Ell with End Cuffs

【SF】FLEXIBLE BEND WITH END CUFFS

Installation Materials for Air-Conditioners 2020 14

Specifications

Material ・・・ PE (66・77) / PP (100・140)

Donwload data

Contact Us

Contact Us
Office network

Details

SF_fig1.eps
Code number Model number A (mm) B (mm) L1 L2 A (inch) B (inch) L1 L2
60874004531 SF-77-500-G 74 62 530 87 3 2 1/2 20 7/8 3 1/2

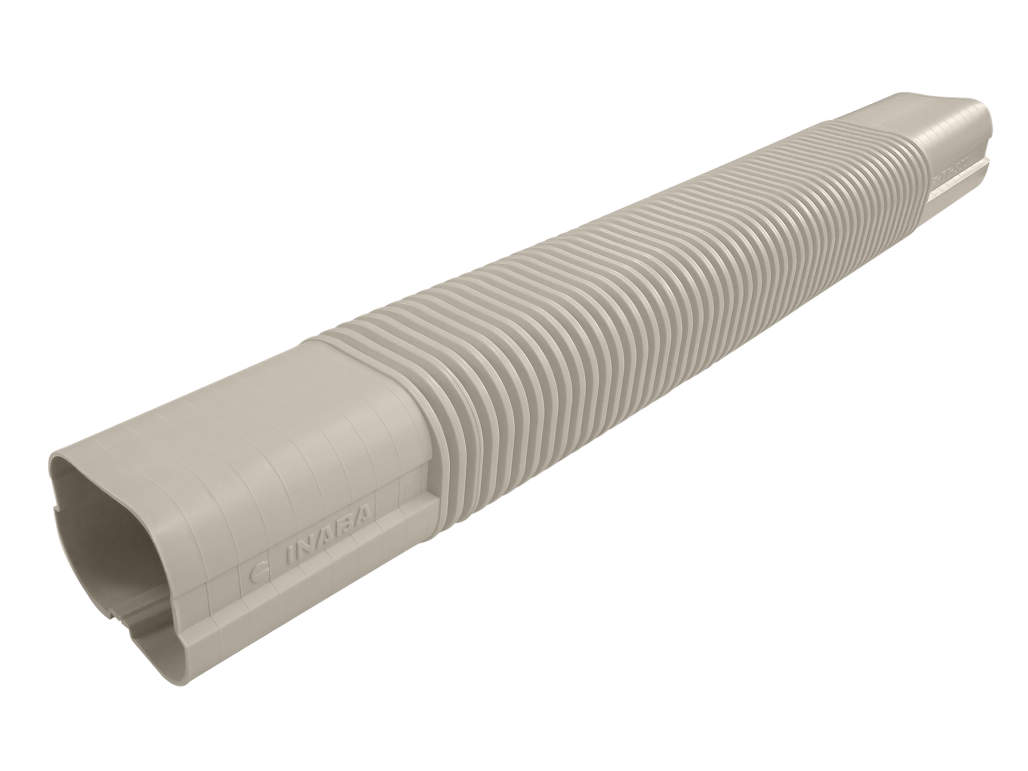

60874004532 SF-77-500-I 74 62 530 87 3 2 1/2 20 7/8 3 1/2
60874004533 SF-77-500-B 74 62 530 87 3 2 1/2 20 7/8 3 1/2

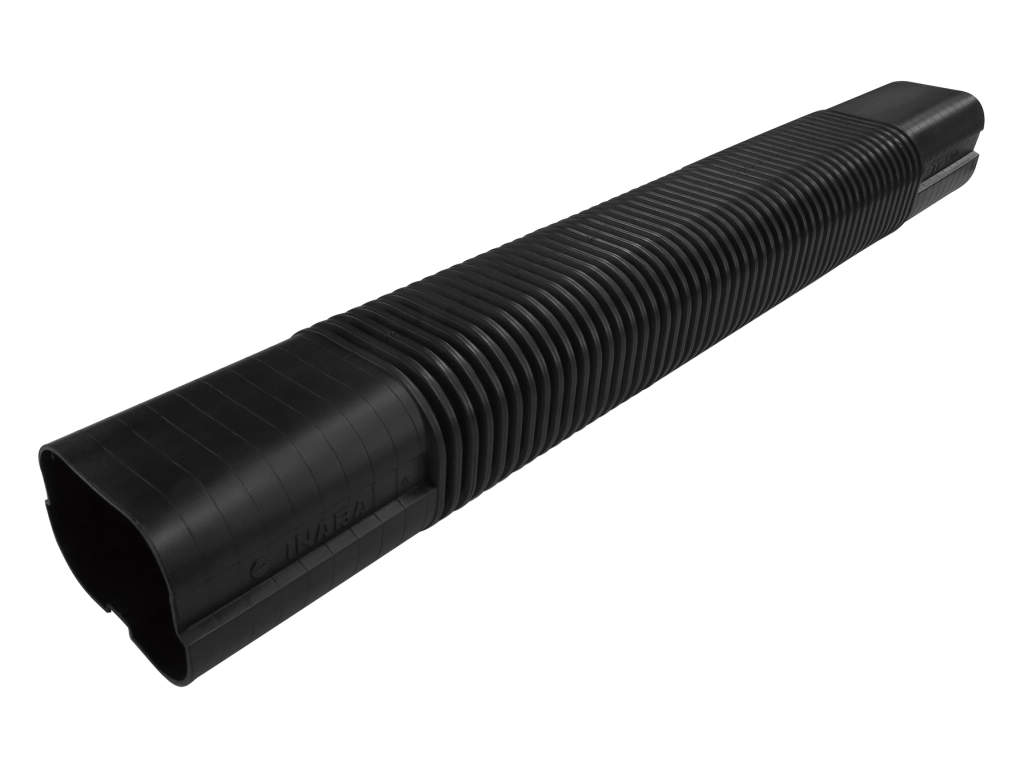

60874004534 SF-77-500-K 74 62 530 87 3 2 1/2 20 7/8 3 1/2

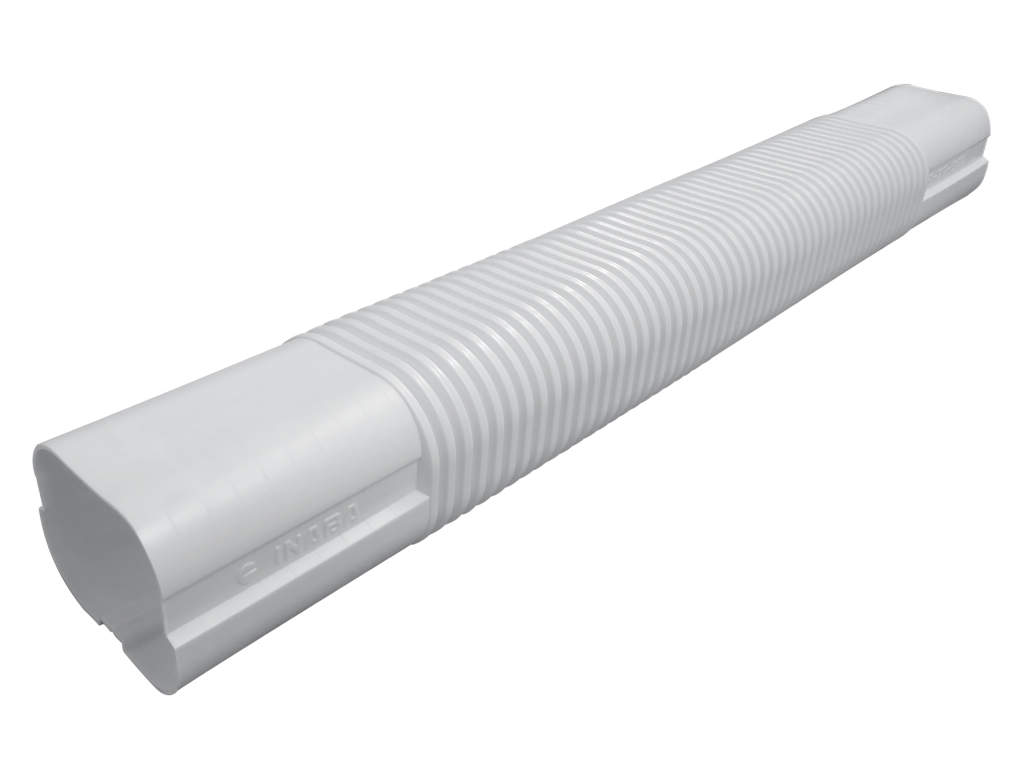

60874004535 SF-77-500-W 74 62 530 87 3 2 1/2 20 7/8 3 1/2

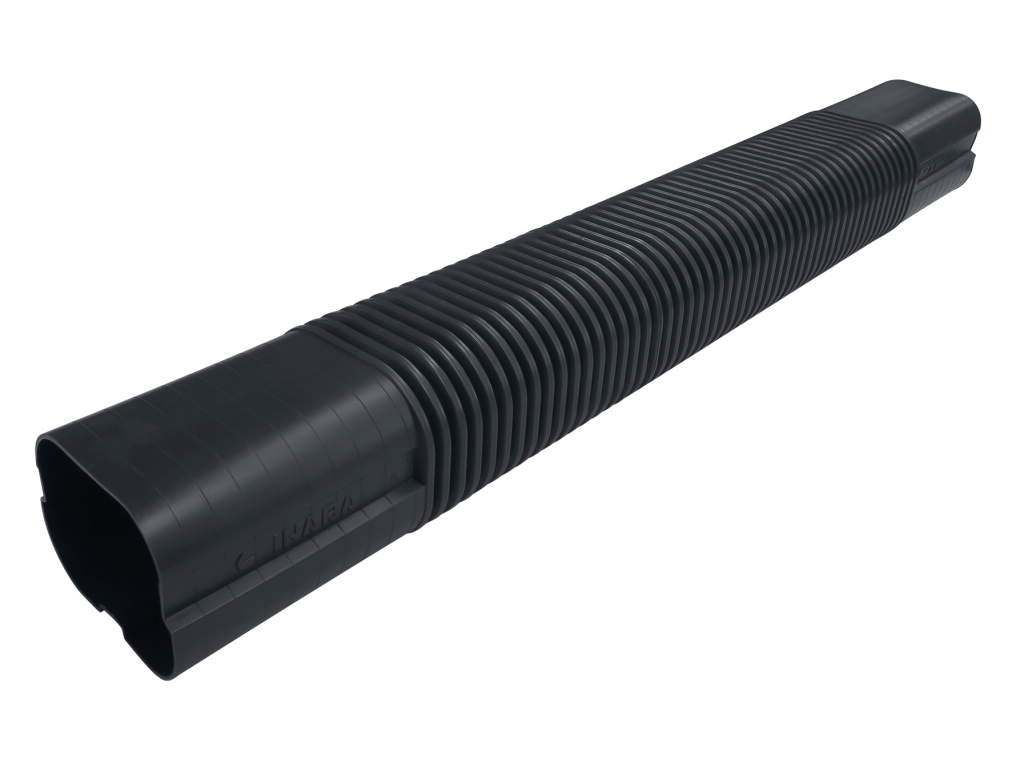

60874004536 SF-77-500-A 74 62 530 87 3 2 1/2 20 7/8 3 1/2
60874004541 SF-77-1000-G 74 62 1060 87 3 2 1/2 41 3/4 3 1/2
60874004542 SF-77-1000-I 74 62 1060 87 3 2 1/2 41 3/4 3 1/2

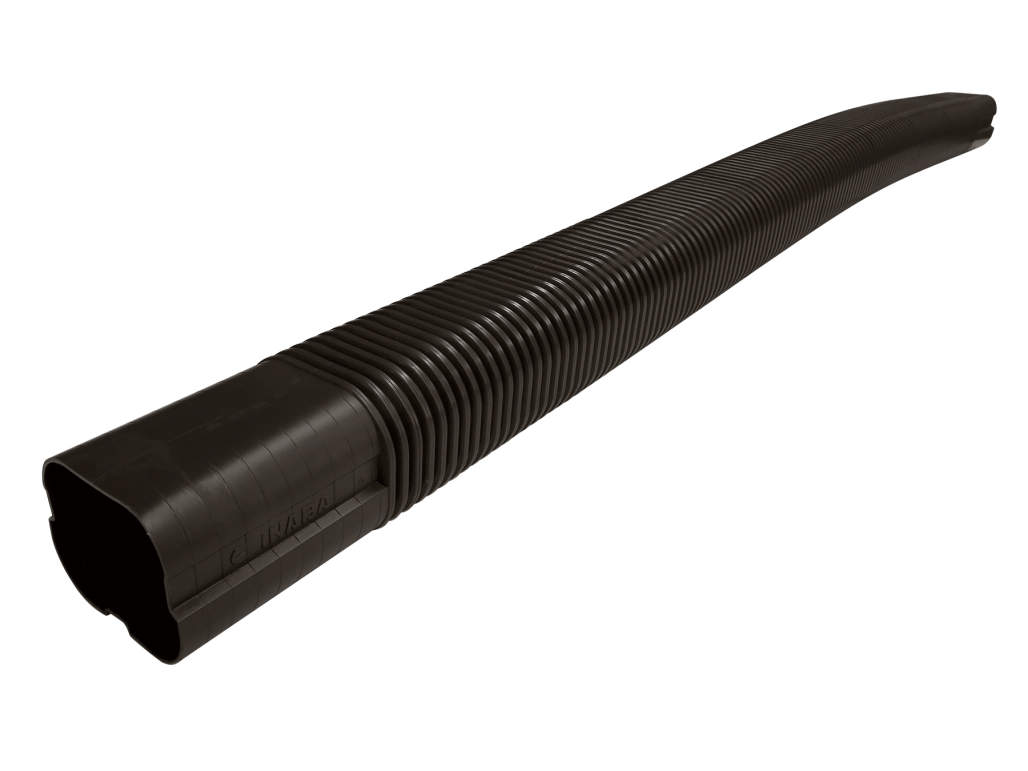

60874004543 SF-77-1000-B 74 62 1060 87 3 2 1/2 41 3/4 3 1/2
60874004544 SF-77-1000-K 74 62 1060 87 3 2 1/2 41 3/4 3 1/2

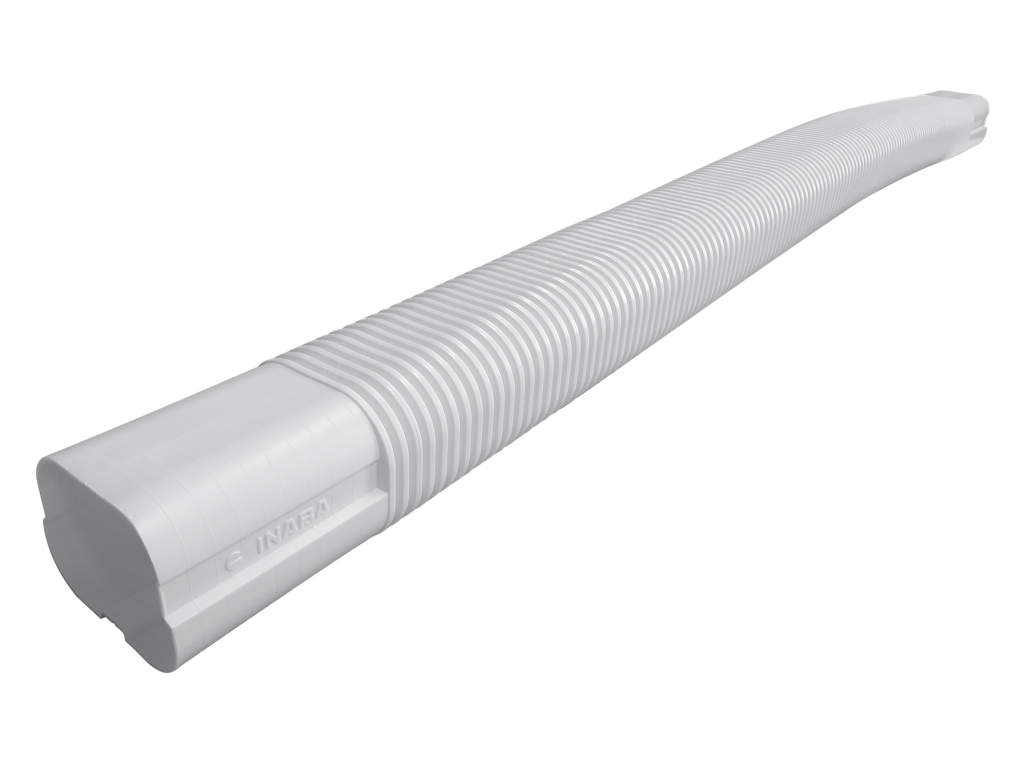

60874004545 SF-77-1000-W 74 62 1060 87 3 2 1/2 41 3/4 3 1/2

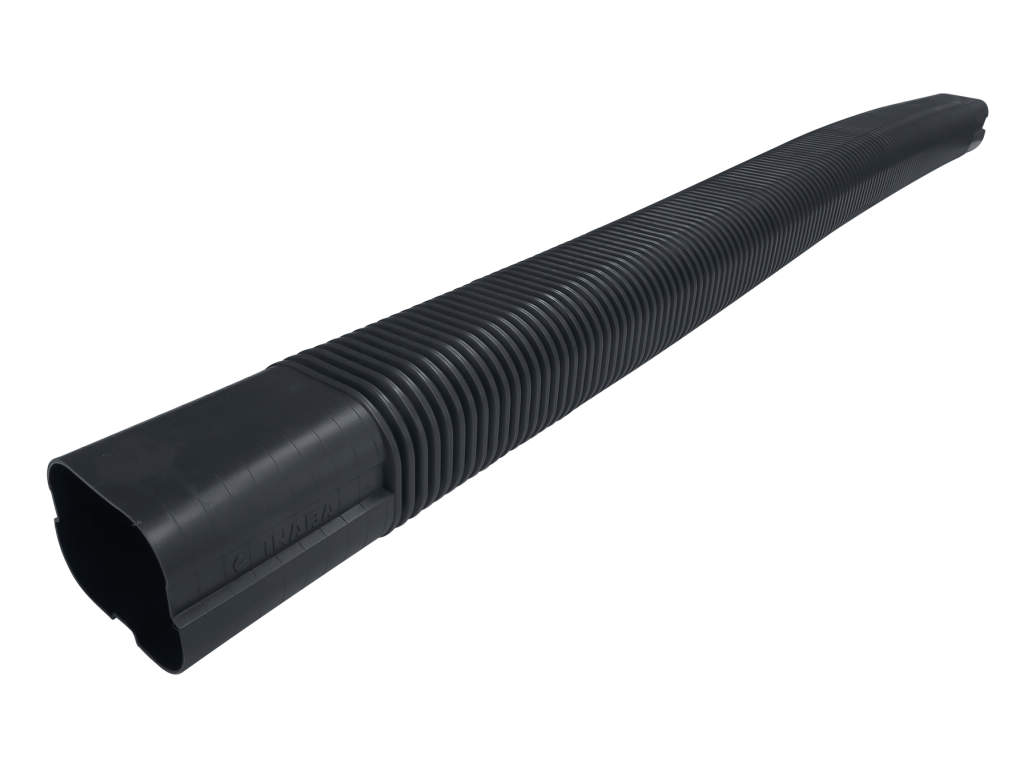

60874004546 SF-77-1000-A 74 62 1060 87 3 2 1/2 41 3/4 3 1/2
60874004551 SF-100-800-G 100 70 800 70 4 2 7/8 31 1/2 2 7/8

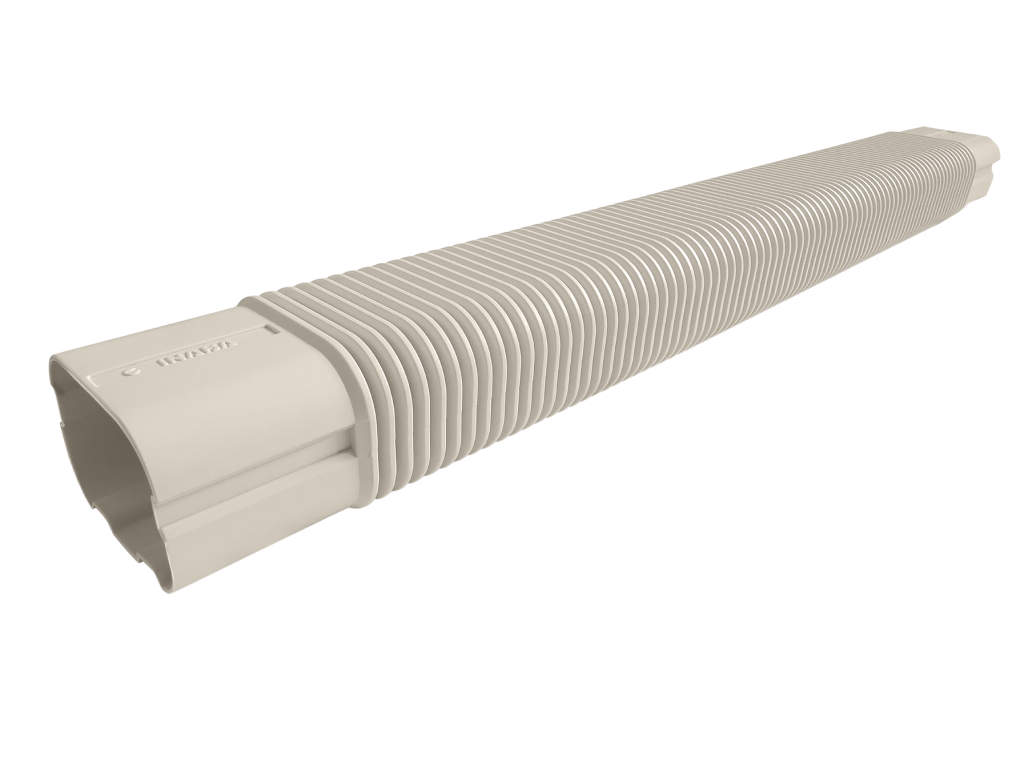

60874004552 SF-100-800-I 100 70 800 70 4 2 7/8 31 1/2 2 7/8

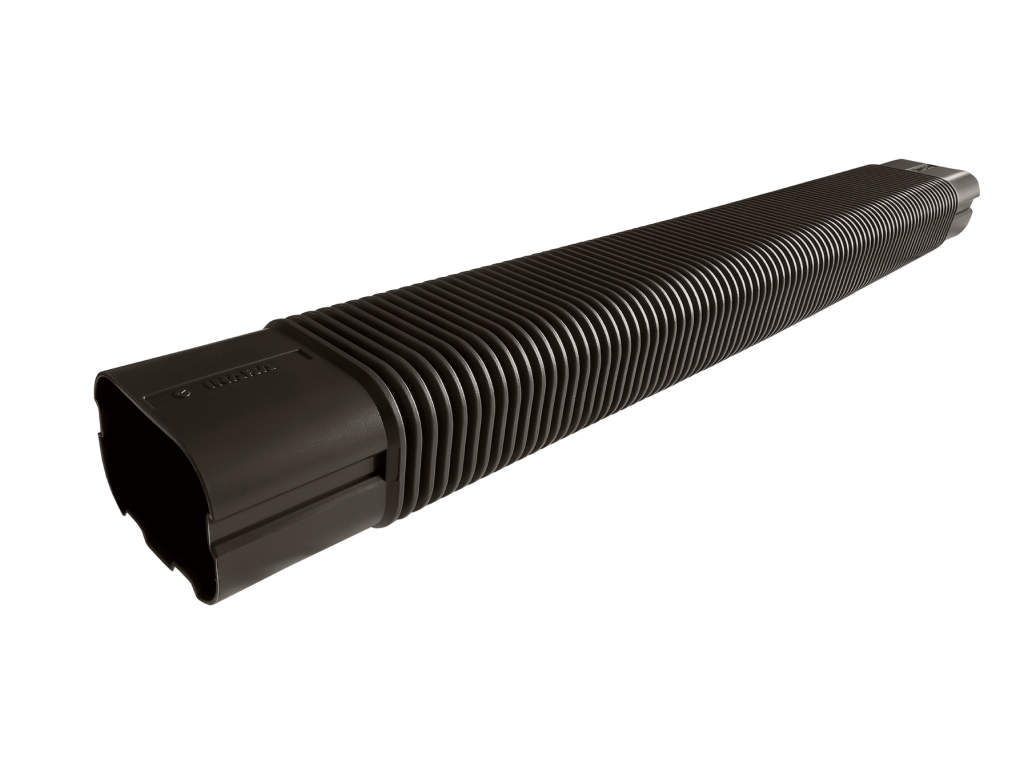

60874004553 SF-100-800-B 100 70 800 70 4 2 7/8 31 1/2 2 7/8

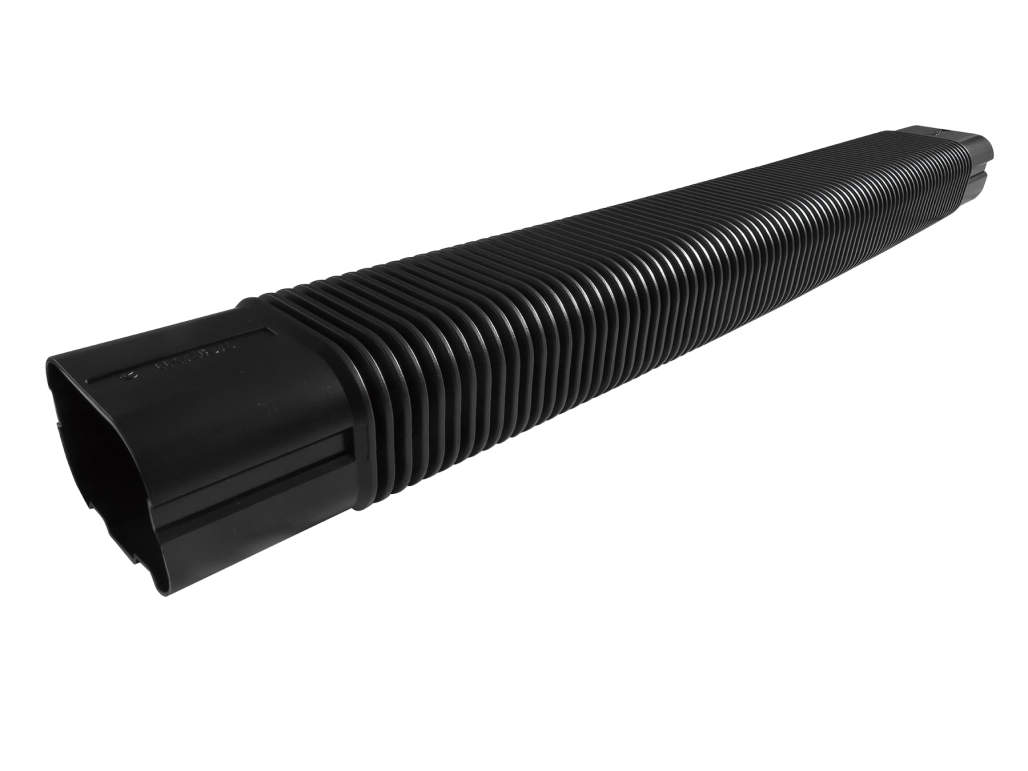

60874004554 SF-100-800-K 100 70 800 70 4 2 7/8 31 1/2 2 7/8

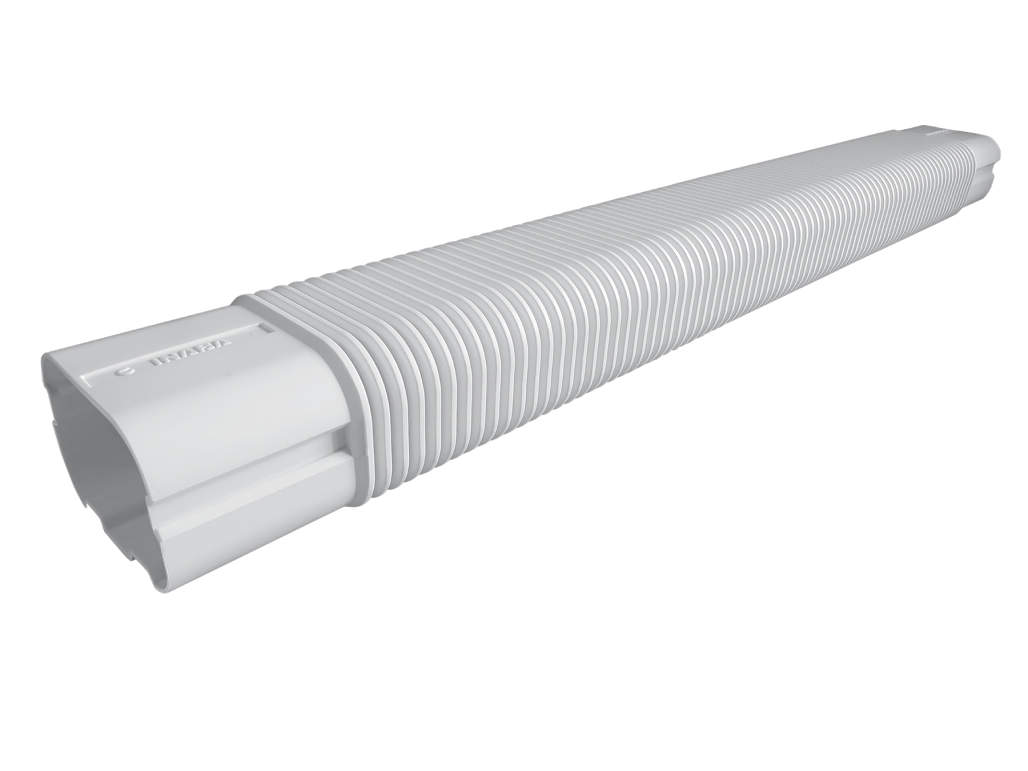

60874004555 SF-100-800-W 100 70 800 70 4 2 7/8 31 1/2 2 7/8

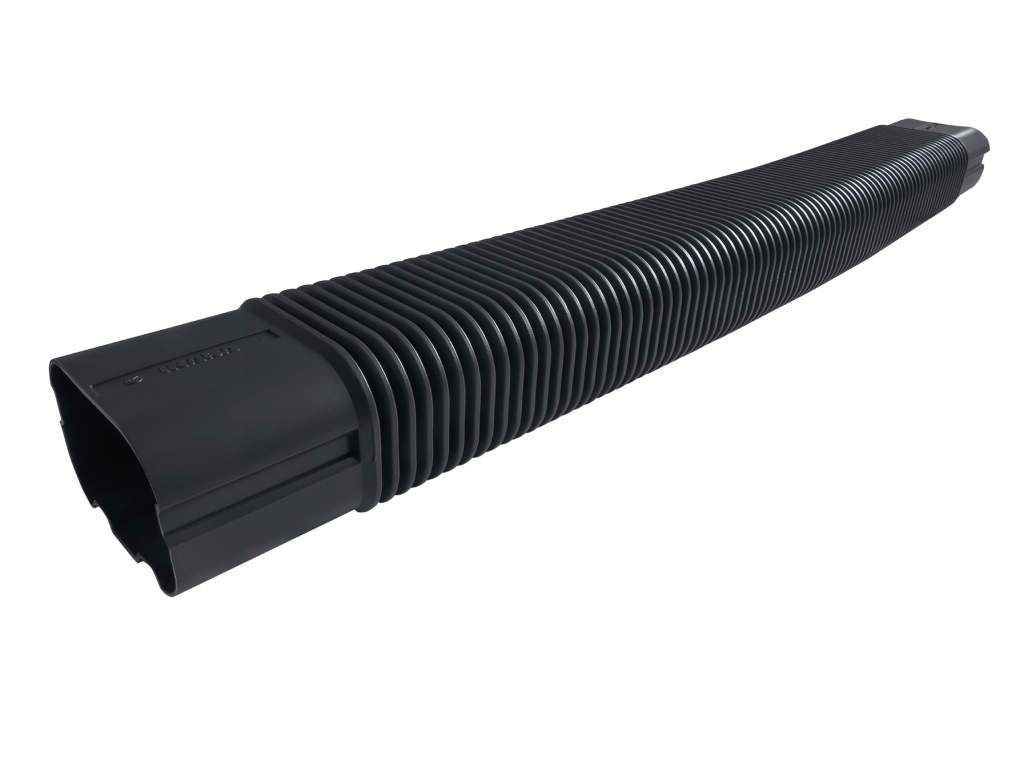

60874004556 SF-100-800-A 100 70 800 70 4 2 7/8 31 1/2 2 7/8

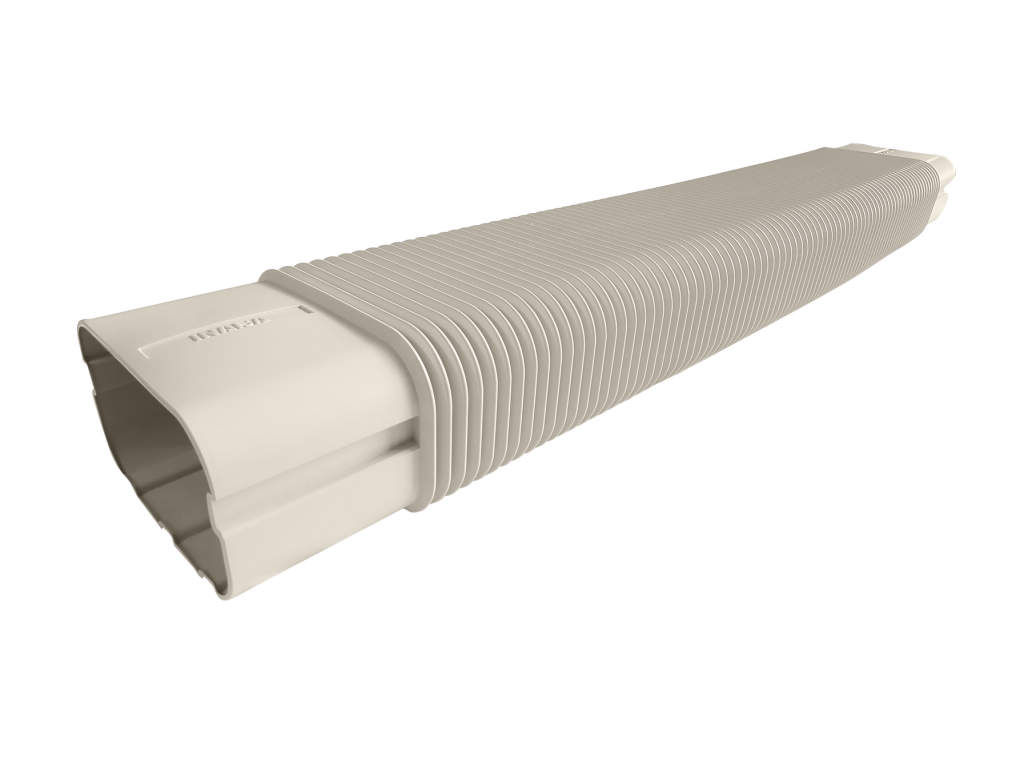

60874004562 SF-140-800-I 140 80 800 80 5 5/8 3 1/4 31 1/2 3 1/4
60874004563 SF-140-800-B 140 80 800 80 5 5/8 3 1/4 31 1/2 3 1/4

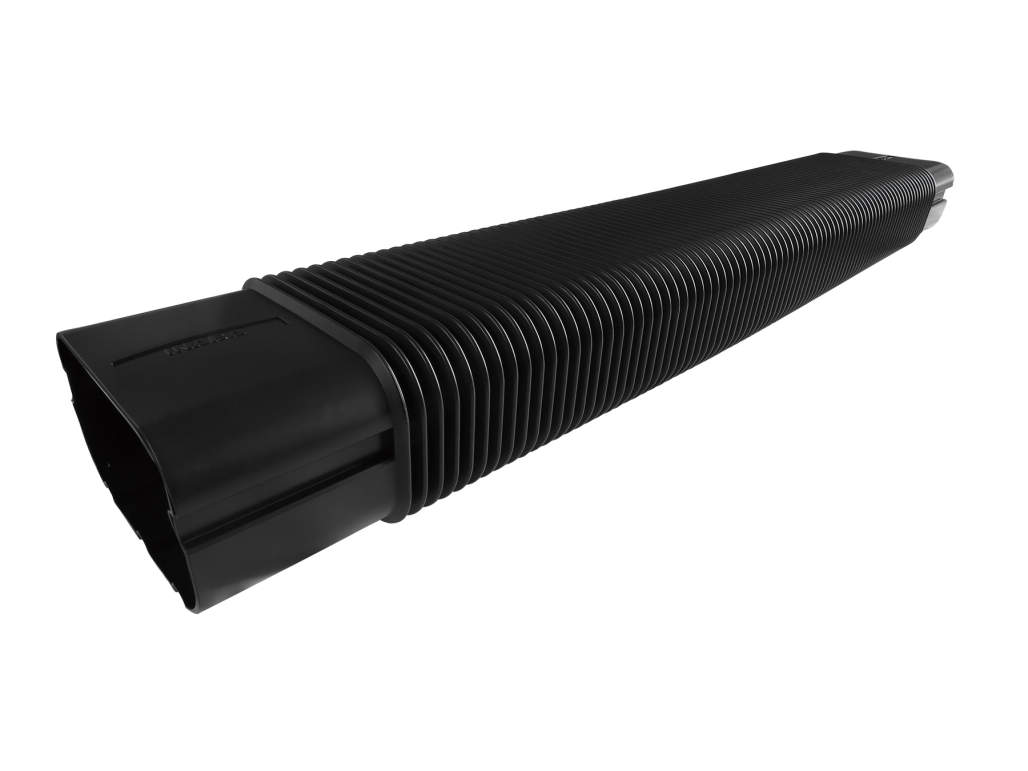

60874004564 SF-140-800-K 140 80 800 80 5 5/8 3 1/4 31 1/2 3 1/4

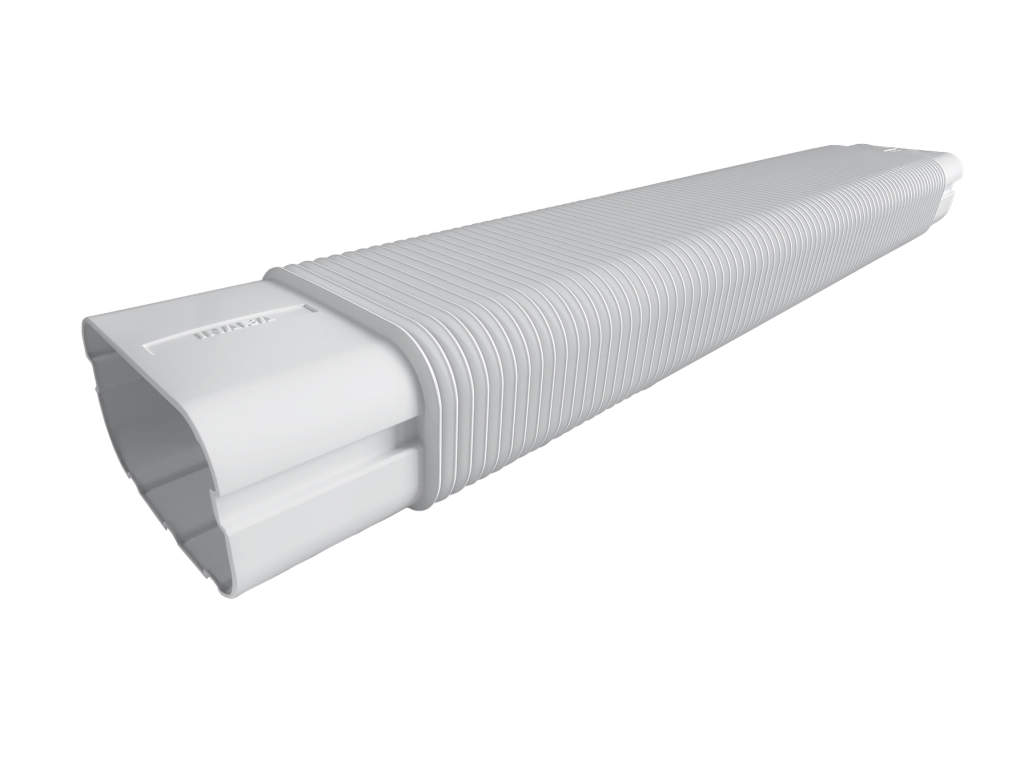

60874004565 SF-140-800-W 140 80 800 80 5 5/8 3 1/4 31 1/2 3 1/4
  • OBuild to order
  • EEnd production
  • SAs long as stock
