【RCO】90°OUTSIDE VERTICAL ELL

E302-00010

90°Outside Vertical Ell

【RCO】90°OUTSIDE VERTICAL ELL

Contact Us

Details

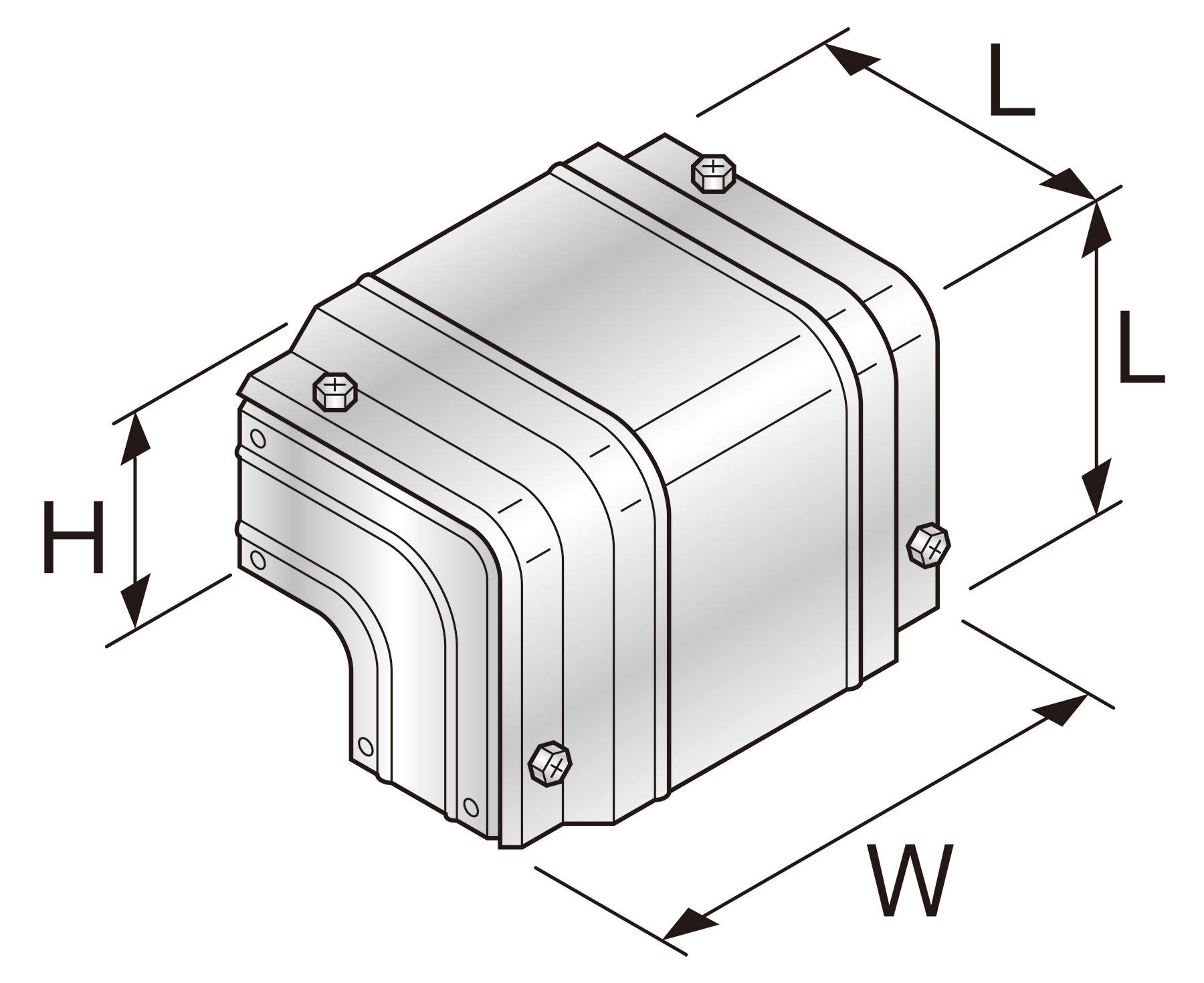

Code number Model number Material Production Width (W) Height (H) L Material Production Width (W) Height (H) L
60874085712 RCO-300-C-ZA ZAM - 450 134 281 ZAM - 17 3/4 5 3/8 11 1/8
60874085722 RCO-450-C-ZA ZAM - 300 254 401 ZAM - 11 7/8 10 15 7/8
60874085732 RCO-600-C-ZA ZAM - 450 254 401 ZAM - 17 3/4 10 15 7/8
60874085742 RCO-300H-C-ZA ZAM - 600 254 401 ZAM - 23 5/8 10 15 7/8
60874085752 RCO-450H-C-ZA ZAM - 300 131 281 ZAM - 11 7/8 5 1/4 11 1/8
60874085762 RCO-600H-C-ZA ZAM - 450 131 281 ZAM - 17 3/4 5 1/4 11 1/8
60874086852 RCO-300-C-SUS Stainless Special Order Only 600 251 401 Stainless Special Order Only 23 5/8 10 15 7/8
60874086862 RCO-450-C-SUS Stainless Special Order Only 450 254 401 Stainless Special Order Only 17 3/4 10 15 7/8
60874086872 RCO-450H-C-SUS Stainless Special Order Only 300 131 Stainless Special Order Only 11 7/8 5 1/4
60874086882 RCO-600H-C-SUS Stainless Special Order Only 450 131 Stainless Special Order Only 17 3/4 5 1/4

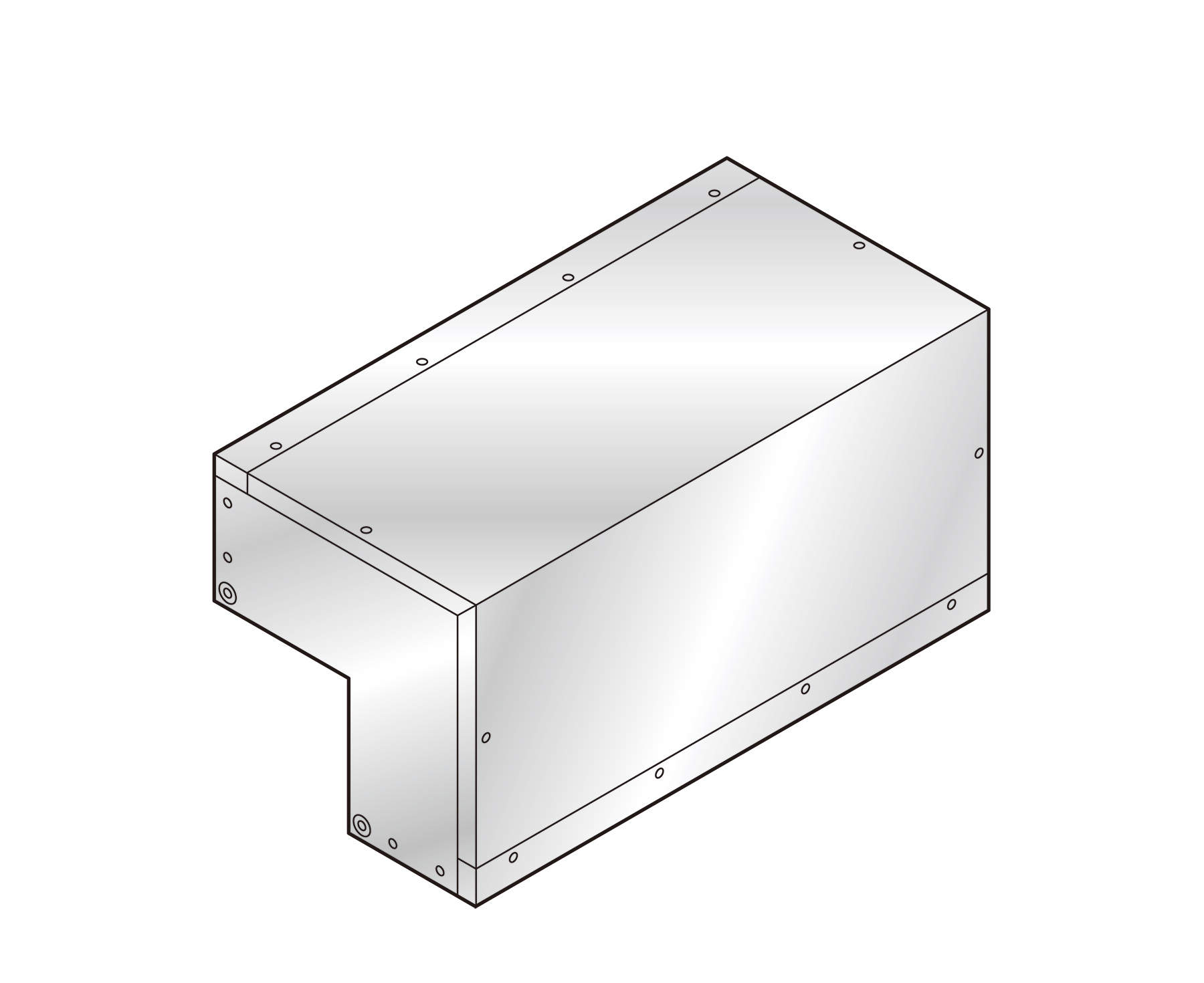

60874089065 RCO-900-ZA ZAM Special Order Only 150 111 210 ZAM Special Order Only 6 4 3/8 8 3/8
60874089315 RCO-900H-ZA ZAM Special Order Only 150 111 210 ZAM Special Order Only 6 4 3/8 8 3/8
  • OBuild to order
  • EEnd production
  • SAs long as stock
