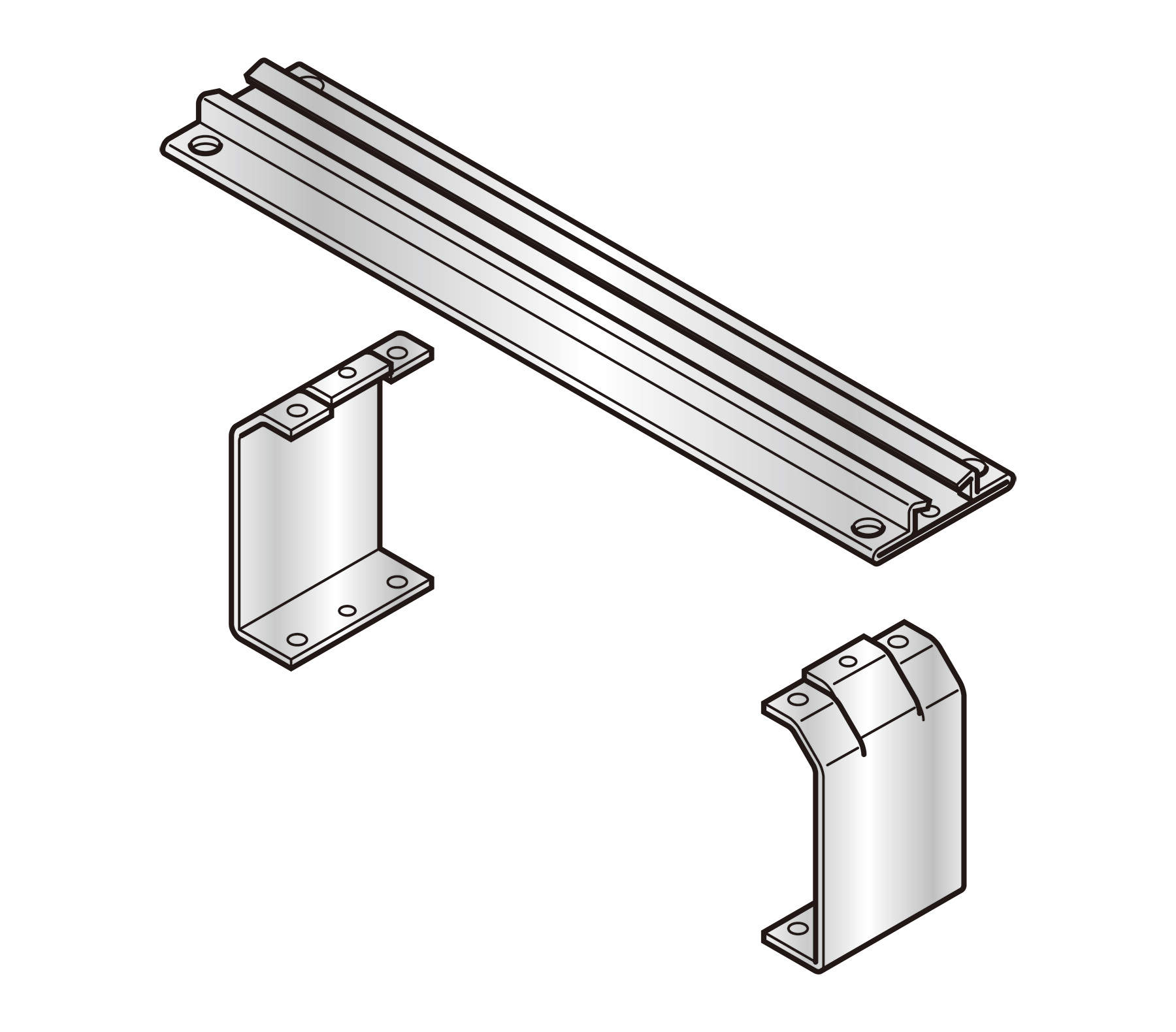

【RSK】PARTITION PLATE FOR RD DUCT - FOR H-TYPE

E302-00038

Prevention Fitting from Insulation Compression Damage for Multiple-Piping (Exclusive for H-Type of 2m and 1m Duct)

【RSK】PARTITION PLATE FOR RD DUCT - FOR H-TYPE

Contact Us

Details

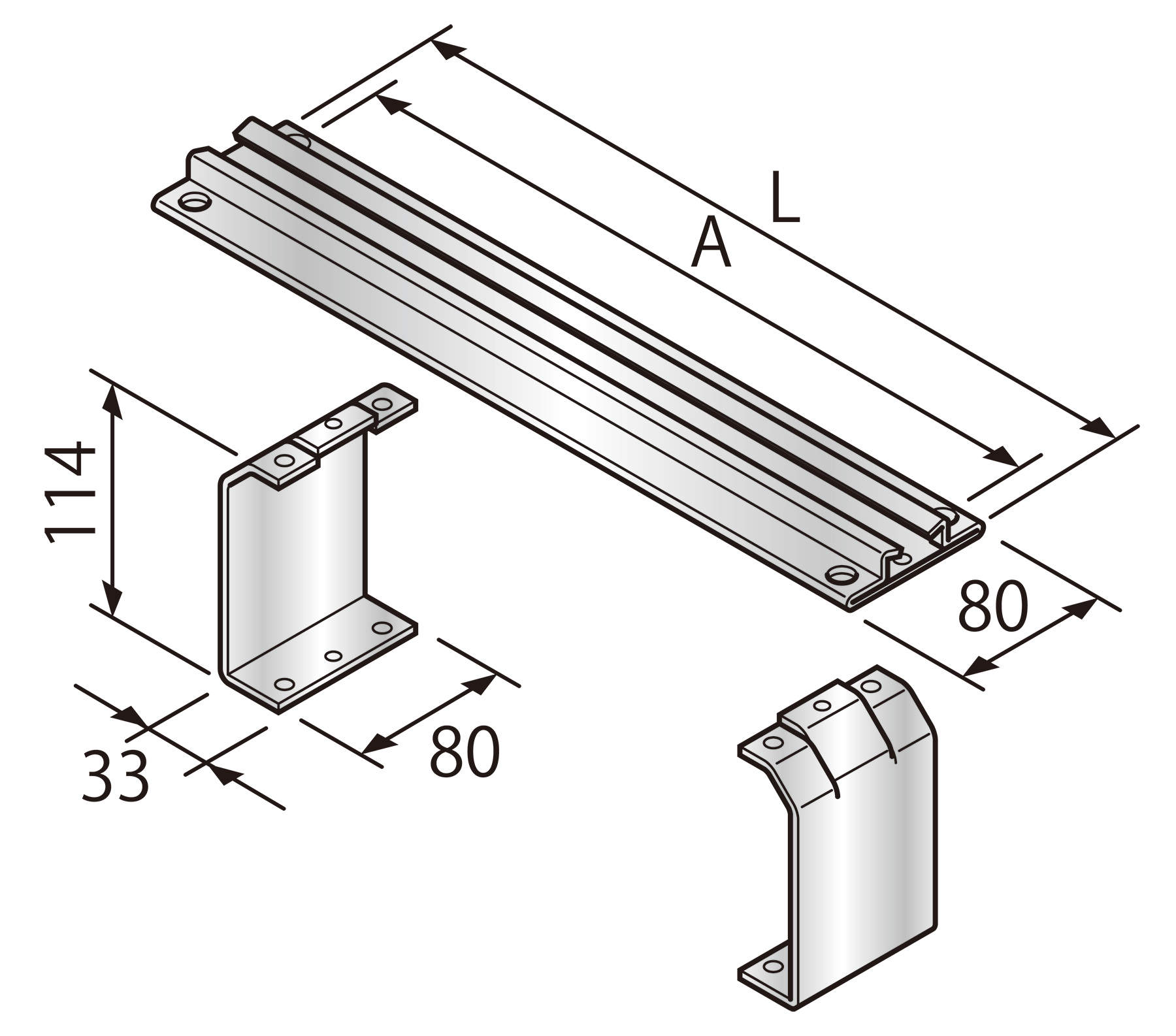

rsk_fig_e.eps
Code number Model number Material Production L A Material Production L A
60874078275 RSK-450H-ZA ZAM - 416 398 ZAM - 16 1/2 15 3/4
60874078285 RSK-600H-ZA ZAM - 566 548 ZAM - 22 3/8 21 5/8
60874084685 RSK-300H-ZA ZAM - 266 248 ZAM - 10 1/2 9 7/8
60874089485 RSK-900H-ZA ZAM Special Order Only 866 848 ZAM Special Order Only 34 1/8 33 1/2
  • OBuild to order
  • EEnd production
  • SAs long as stock
