E603-00007
Multiple Use Support System

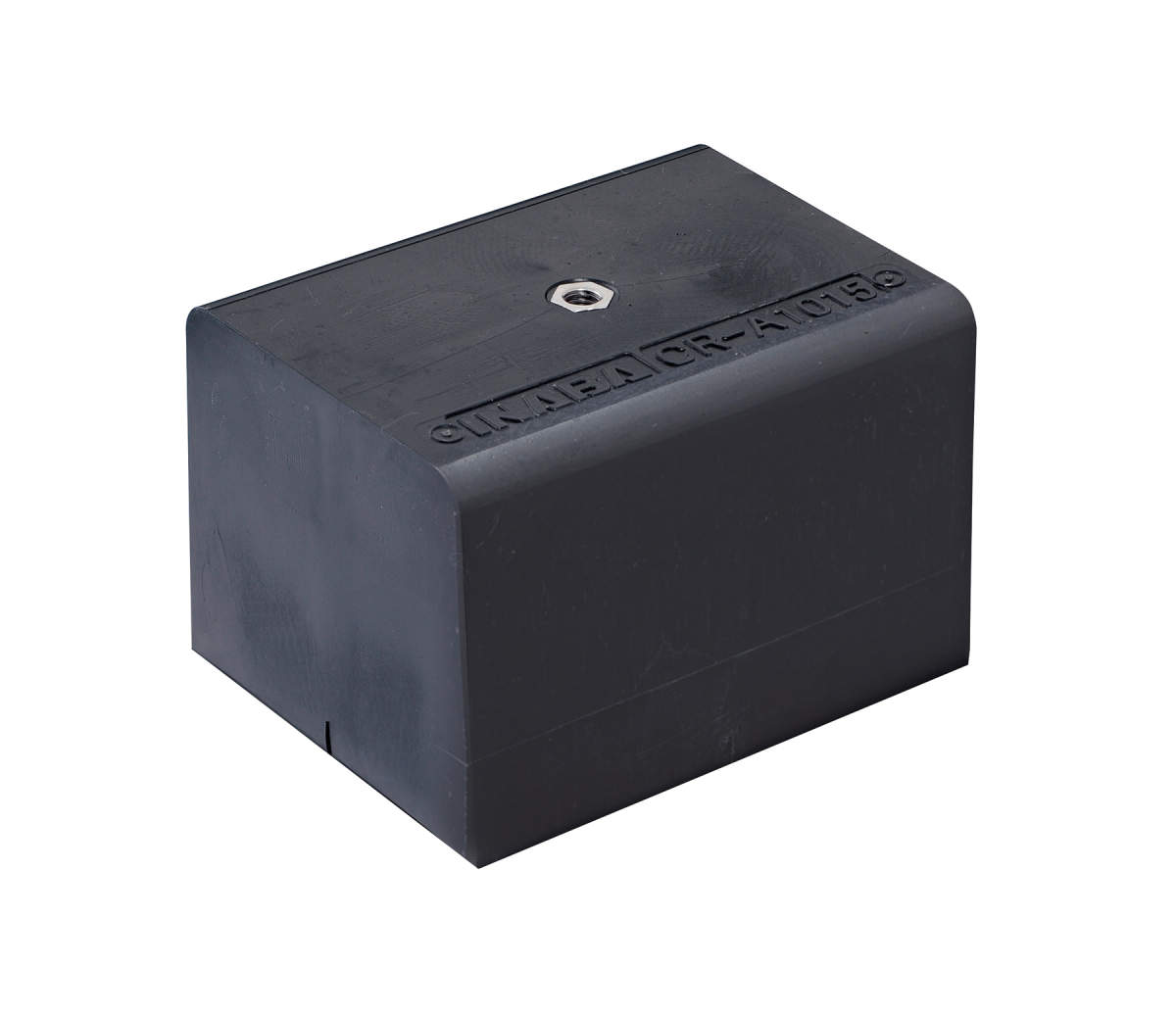

【CR-A】RECYCROCK CR - ANCHOR BASE TYPE
Features
Stable with weight (concrete) inside.
With slip-preventive rubber sheet, OK to use on the water-proof coated floor (except some models).
Specifications
Material ・・・ Exterior : Recycled resin (PP, PE) / Interior : Eco-concrete / Rubber sheet : Recycled rubber
Temperature Range ・・・ -10℃~50℃
Color ・・・ Black
Caution
Read product specifications carefully before use.
Contact Us
Details
![cr-a_fig_e.eps](http://www.inaba-denko.com/storage/gamedios/en/file/cr-a_fig_e.jpg)
Code number | Model number | 【ot】Rubber sheet | Dimension L×W1×W2×H(mm) | Weight | Allowable face load(N[kgf]) | Dimension L×W1×W2×H(inch) | Weight (lbs) | Allowable face load(lbs) |
---|---|---|---|---|---|---|---|---|
60817014805 | CR-A1015 | ○ | 150×120×110×100 | 2.3kg | 7,840[800] | 150×120×110×100 | 5 | 1764 |
- OBuild to order
- EEnd production
- SAs long as stock
