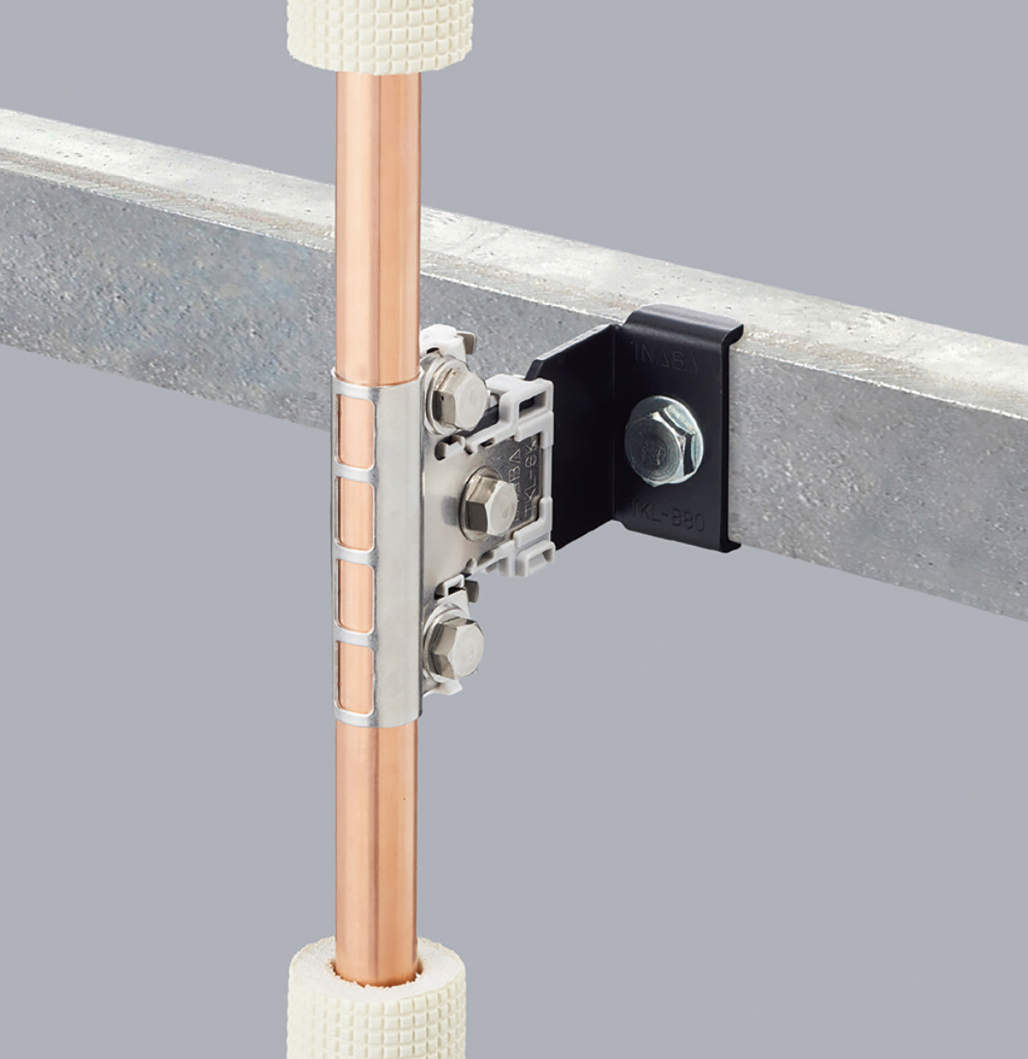

【TKL】Pipe Support TKL(NON-BRAZE) | Products

Donwload data

Code number	Model number	Compliant pipe size	A	B

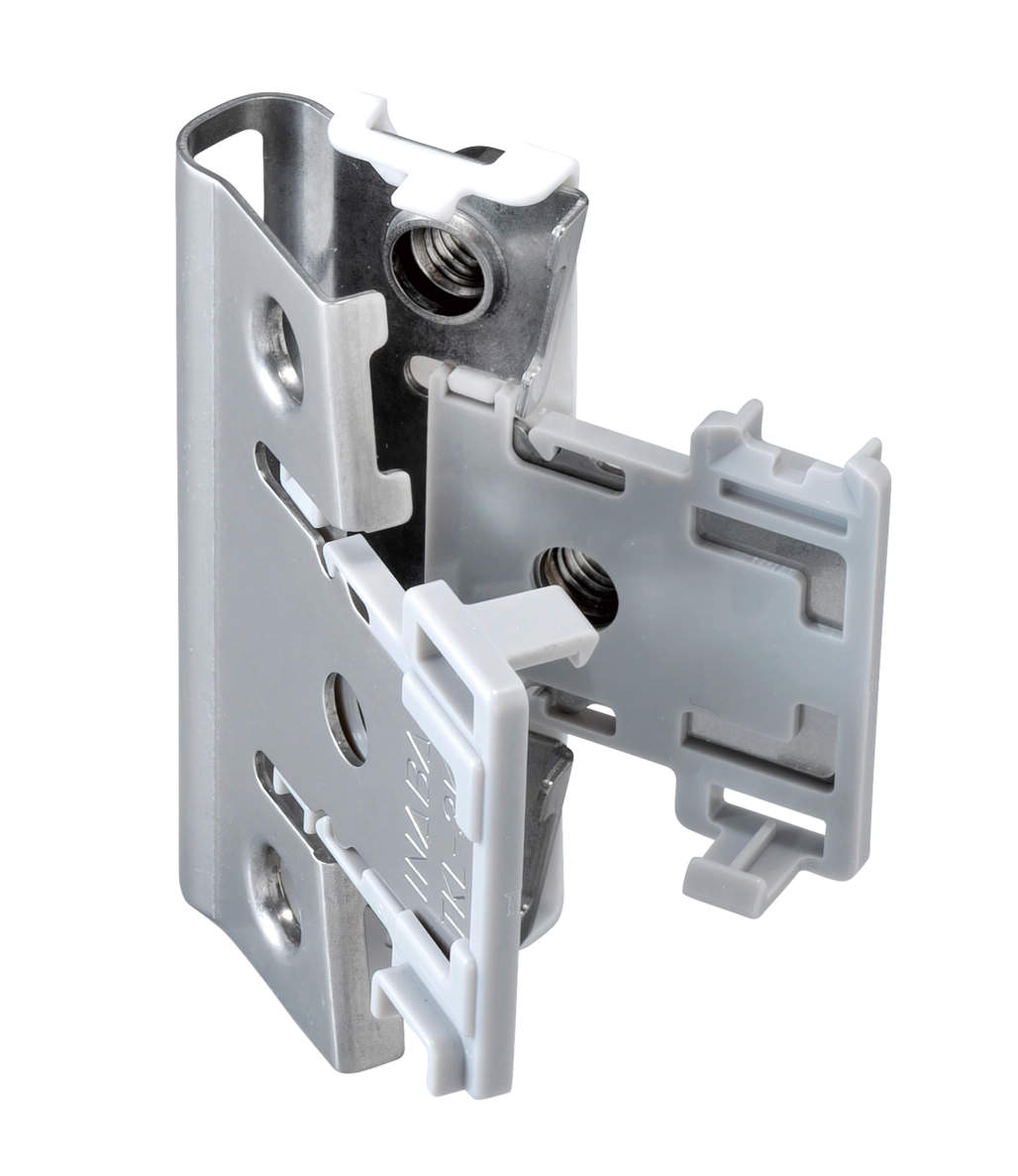

60874051503	TKL-3K	φ9.52	59	30
60874051504	TKL-4K	φ12.70	61	32
60874051505	TKL-5K	φ15.88	63	34

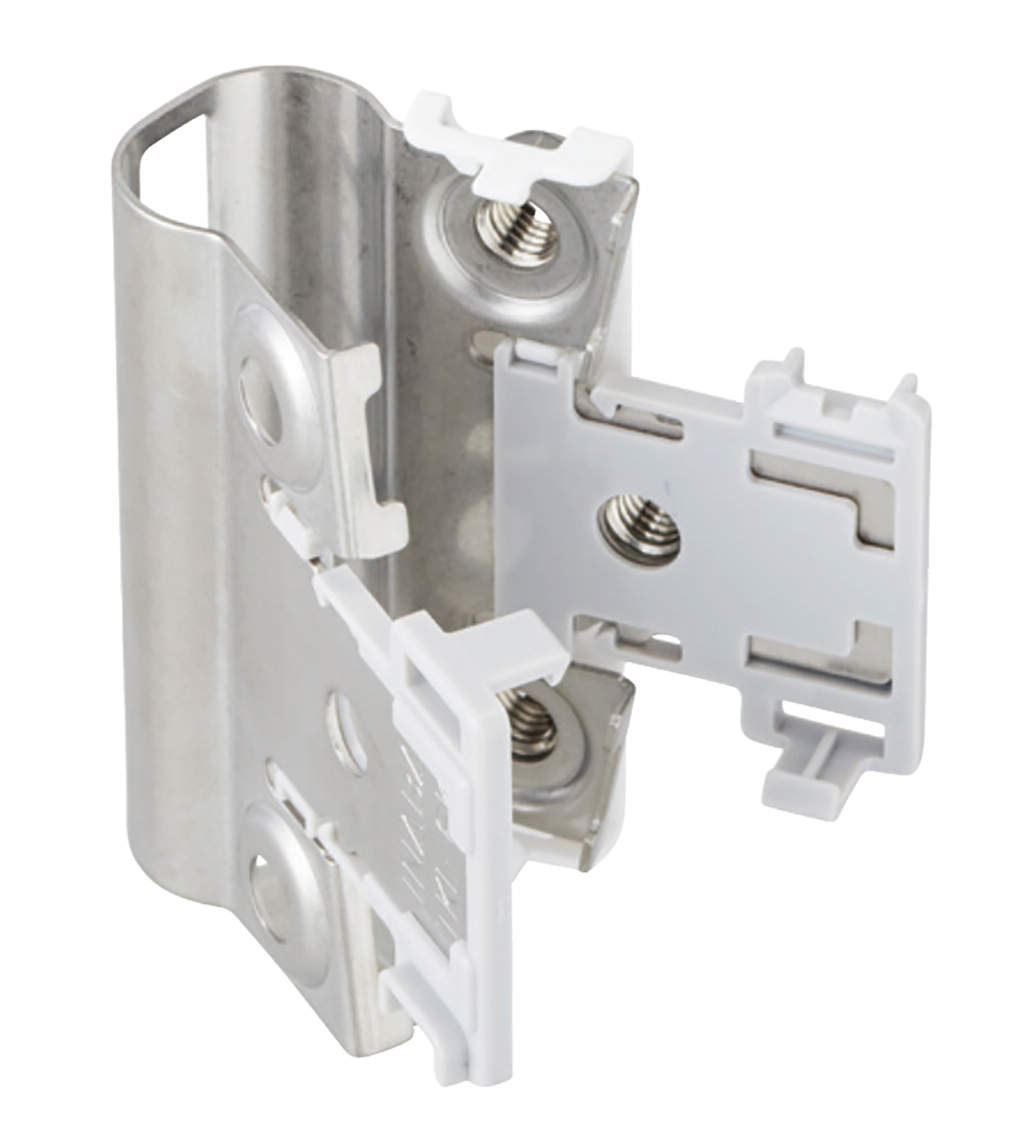

60874051506	TKL-6K	φ19.05	65	36
60874051507	TKL-7K	φ22.22	66	37
60874051508	TKL-8K	φ25.40	68	39
60874051509	TKL-9K	φ28.58	70	41
60874051510	TKL-10K	φ31.75	72	43
60874051511	TKL-11K	φ34.92	73	44
60874051512	TKL-12K	φ38.10	75	46
60874051513	TKL-13K	φ41.28	77	48
60874051514	TKL-14K	φ44.45	78	49
