【SW】Wandeinlass (2 Stück)

Installation Materials for Air-Conditioners 2020 12

Daten herunterladen

Kennziffer	Modellnummer	A (mm)	B (mm)	C (mm)	D (mm)	E (mm)	A (Zoll)	B (Zoll)	C (Zoll)	D (Zoll)	E (Zoll)
60874004122	SW-77-I	83	66	110	205	77	3 3/8	2 5/8	4 3/8	8 1/8	3 1/8
60874004123	SW-77-B	83	66	110	205	77	3 3/8	2 5/8	4 3/8	8 1/8	3 1/8
60874004124	SW-77-K	83	66	110	205	77	3 3/8	2 5/8	4 3/8	8 1/8	3 1/8
60874004125	SW-77-W	83	66	110	205	77	3 3/8	2 5/8	4 3/8	8 1/8	3 1/8

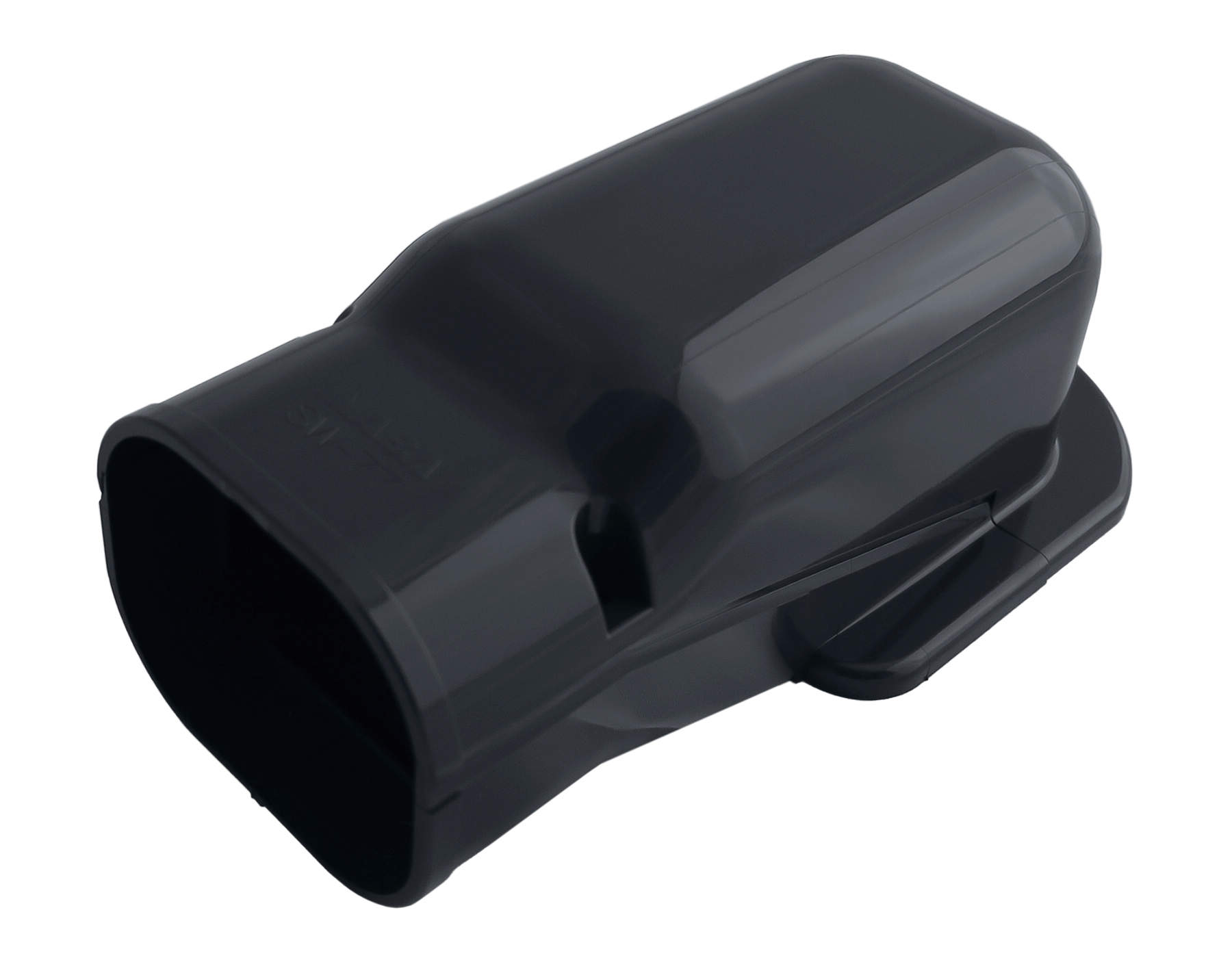

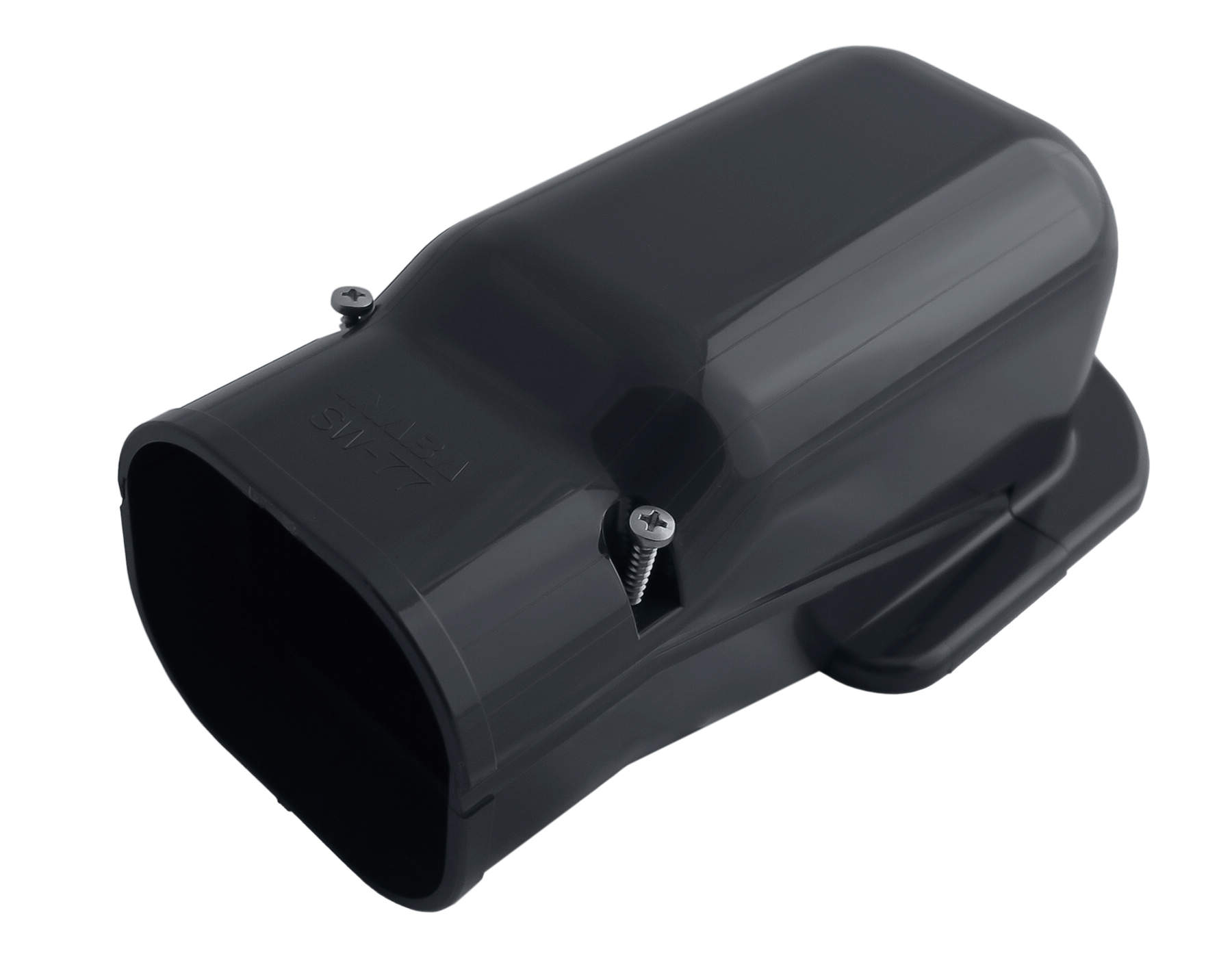

60874004127	SW-77-A	75	63	60	76	56	3	2 1/2	2 3/8	3	2 1/4

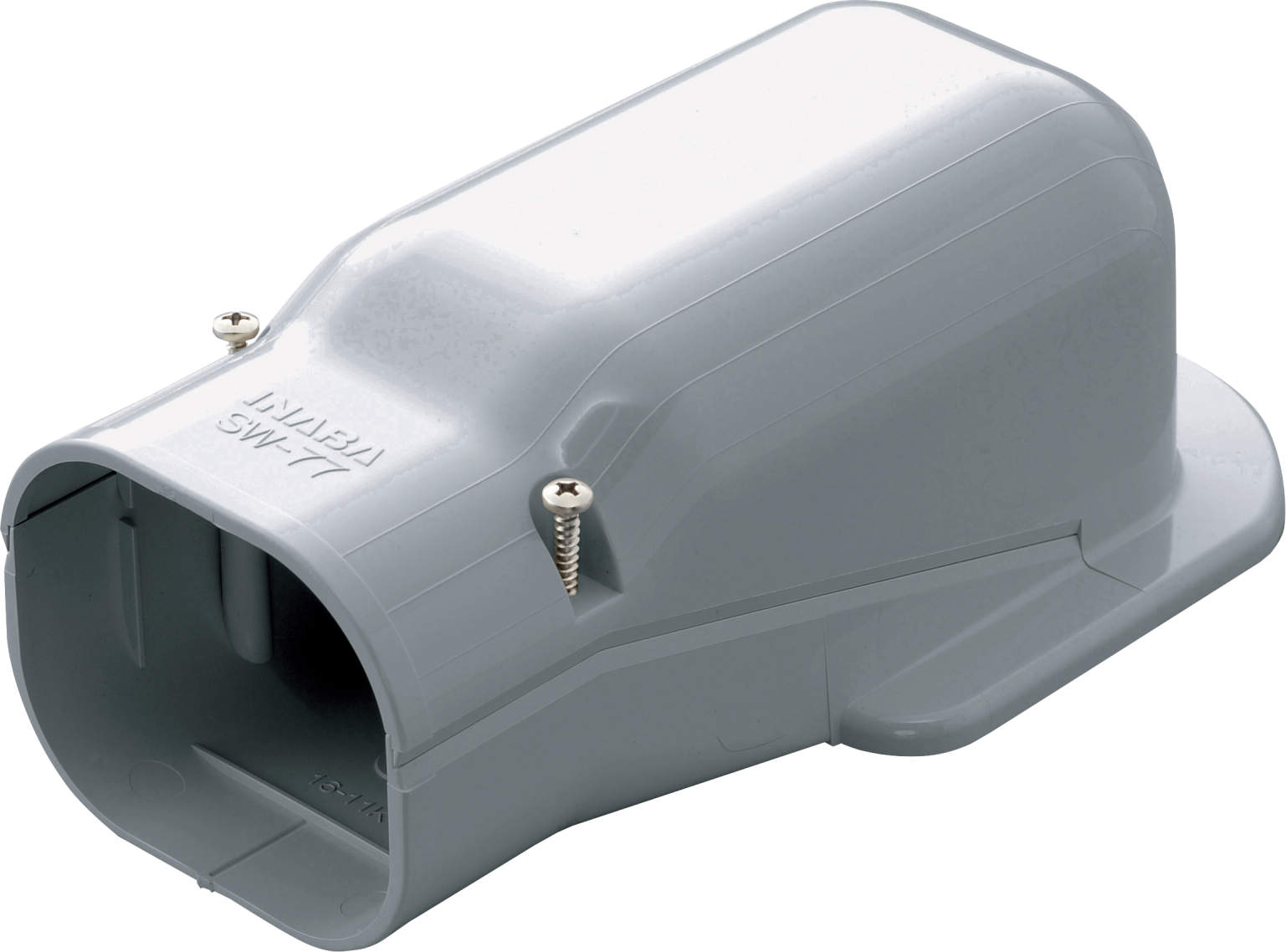

60874004128	SW-77-G	75	63	60	76	56	3	2 1/2	2 3/8	3	2 1/4
60874004132	SW-100-I	110	74	128	223	86	4 3/8	3	5 1/8	8 7/8	3 1/2
60874004133	SW-100-B	110	74	128	223	86	4 3/8	3	5 1/8	8 7/8	3 1/2
60874004134	SW-100-K	110	74	128	223	86	4 3/8	3	5 1/8	8 7/8	3 1/2
60874004135	SW-100-W	110	74	128	223	86	4 3/8	3	5 1/8	8 7/8	3 1/2

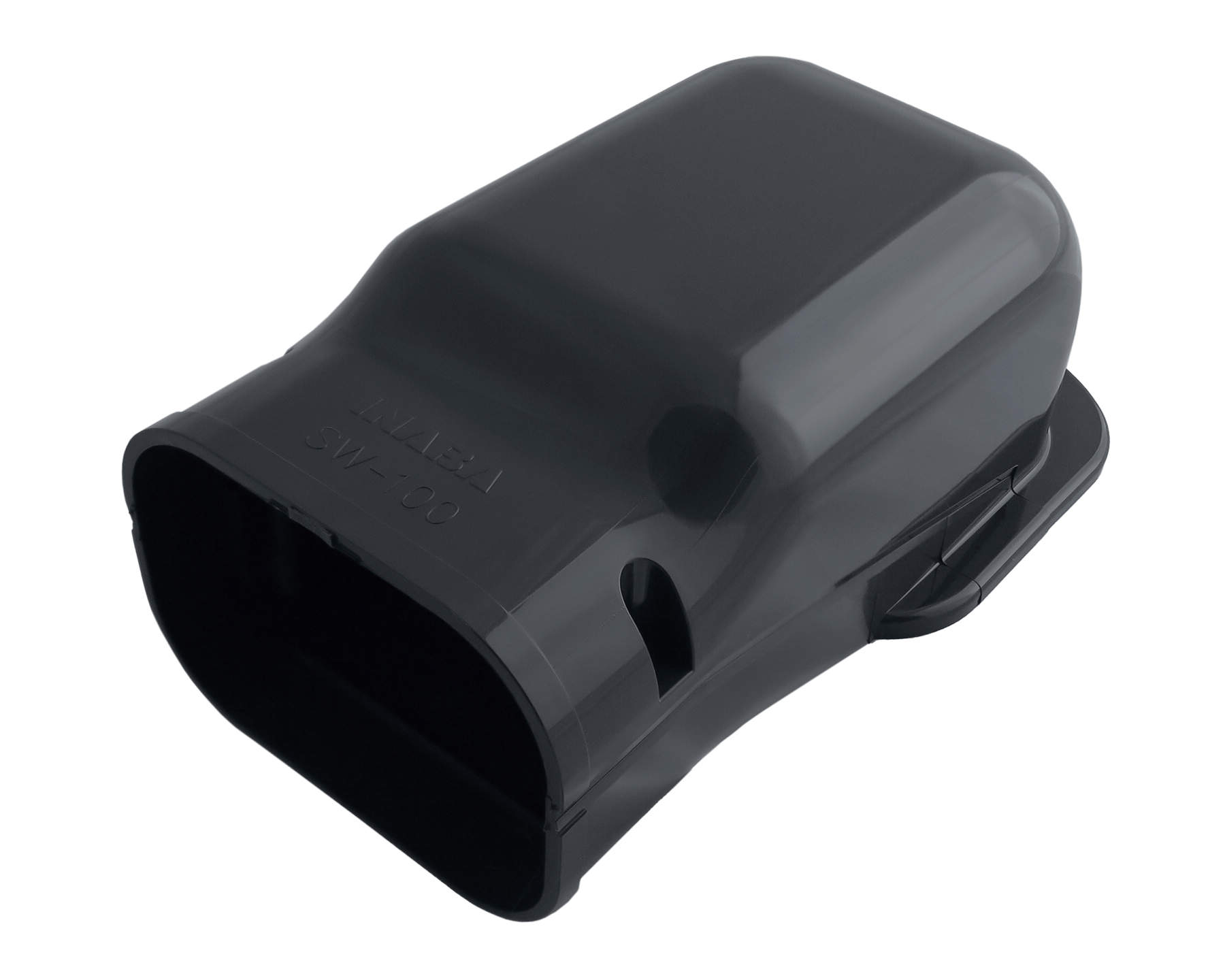

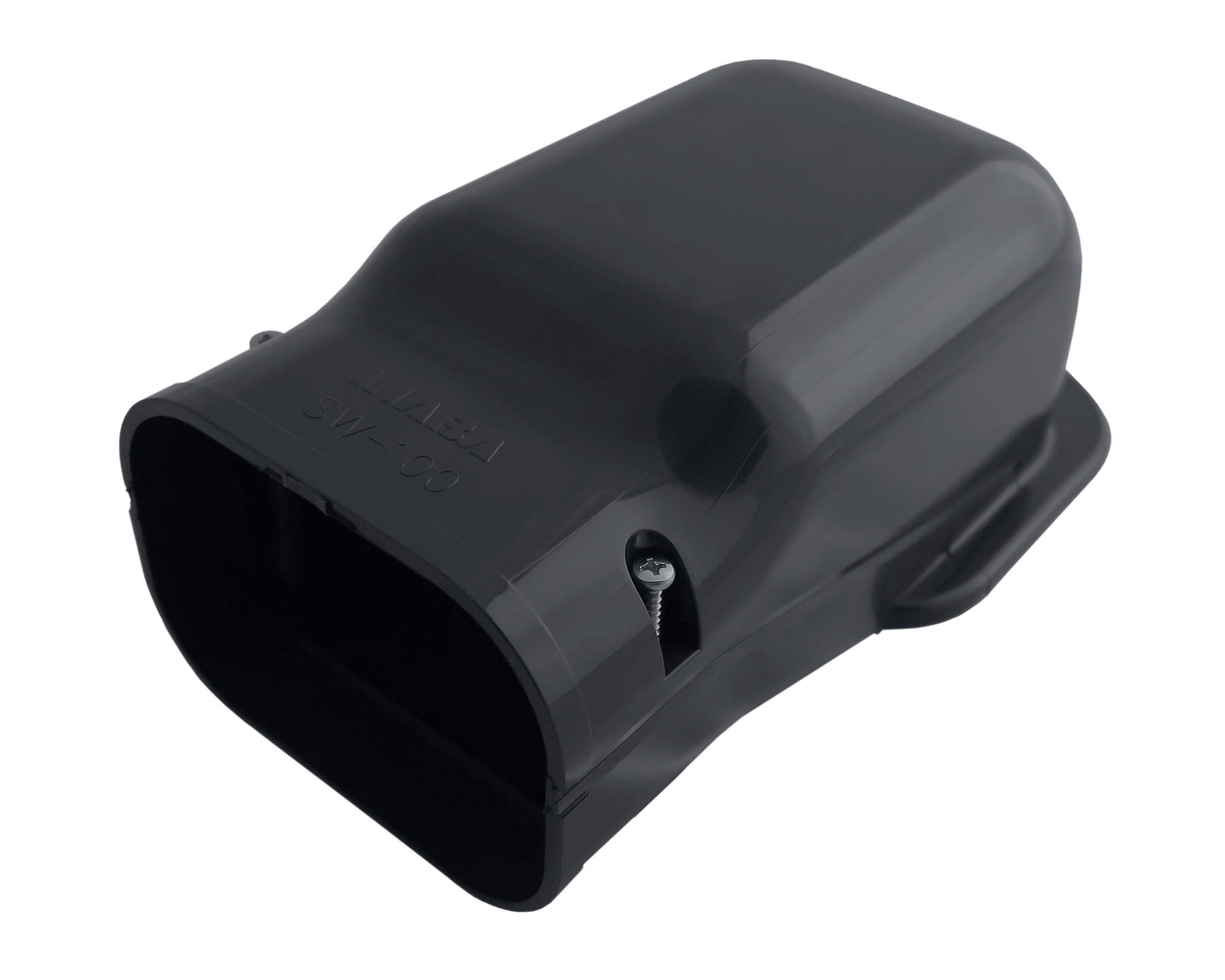

60874004136	SW-100-A	100	70	86	99	64	4	2 7/8	3 1/2	4	2 5/8
60874004137	SW-100-G	100	70	86	99	64	4	2 7/8	3 1/2	4	2 5/8
60874004142	SW-140-I	146	84	166	280	98	5 3/4	3 3/8	6 5/8	11 1/8	3 7/8
60874004143	SW-140-B	146	84	166	280	98	5 3/4	3 3/8	6 5/8	11 1/8	3 7/8
60874004144	SW-140-K	146	84	166	280	98	5 3/4	3 3/8	6 5/8	11 1/8	3 7/8
60874004145	SW-140-W	146	84	166	280	98	5 3/4	3 3/8	6 5/8	11 1/8	3 7/8
60874004146	SW-140-G	146	84	166	280	98	5 3/4	3 3/8	6 5/8	11 1/8	3 7/8
