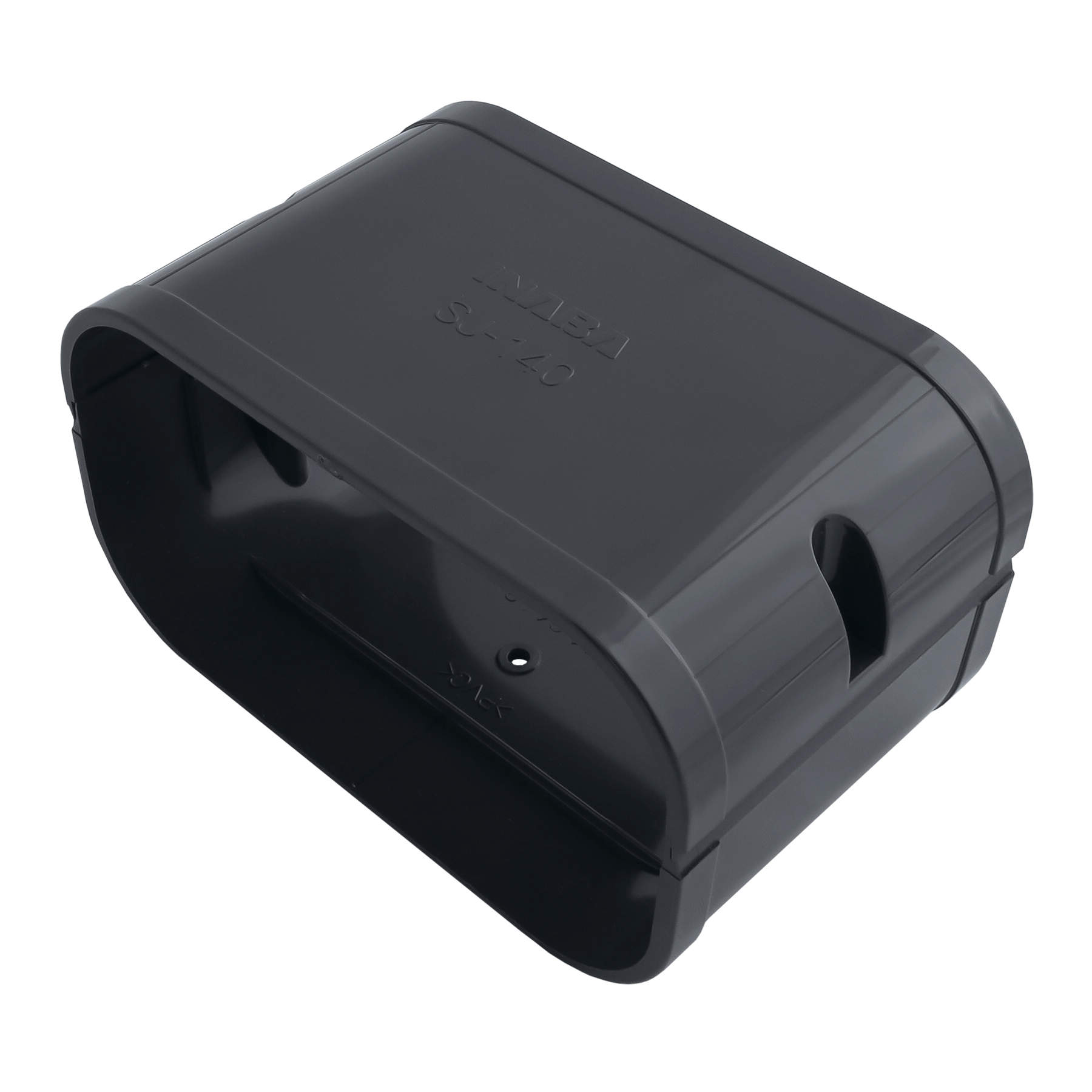

【SJ】COUPLER

Installation Materials for Air-Conditioners 2020 13

Donwload data

Code number	Model number	A (mm)	B (mm)	C (mm)	A (inch)	B (inch)	C (inch)
60874004422	SJ-77-I	85	67	50	3 3/8	2 3/4	2
60874004423	SJ-77-B	85	67	50	3 3/8	2 3/4	2
60874004424	SJ-77-K	85	67	50	3 3/8	2 3/4	2
60874004425	SJ-77-W	85	67	50	3 3/8	2 3/4	2
60874004426	SJ-77-A	85	67	50	3 3/8	2 3/4	2
60874004431	SJ-100-G	109	75	66	4 3/8	3	2 5/8
60874004432	SJ-100-I	109	75	66	4 3/8	3	2 5/8
60874004433	SJ-100-B	109	75	66	4 3/8	3	2 5/8
60874004434	SJ-100-K	109	75	66	4 3/8	3	2 5/8
60874004435	SJ-100-W	109	75	66	4 3/8	3	2 5/8
60874004436	SJ-100-A	109	75	66	4 3/8	3	2 5/8
60874004441	SJ-140-G	146	84	90	5 3/4	3 3/8	3 5/8
60874004442	SJ-140-I	146	84	90	5 3/4	3 3/8	3 5/8
60874004443	SJ-140-B	146	84	90	5 3/4	3 3/8	3 5/8
60874004444	SJ-140-K	146	84	90	5 3/4	3 3/8	3 5/8
60874004445	SJ-140-W	146	84	90	5 3/4	3 3/8	3 5/8
